Memory Mirrors

WARNING: This page is about a different variant/trim than selected.

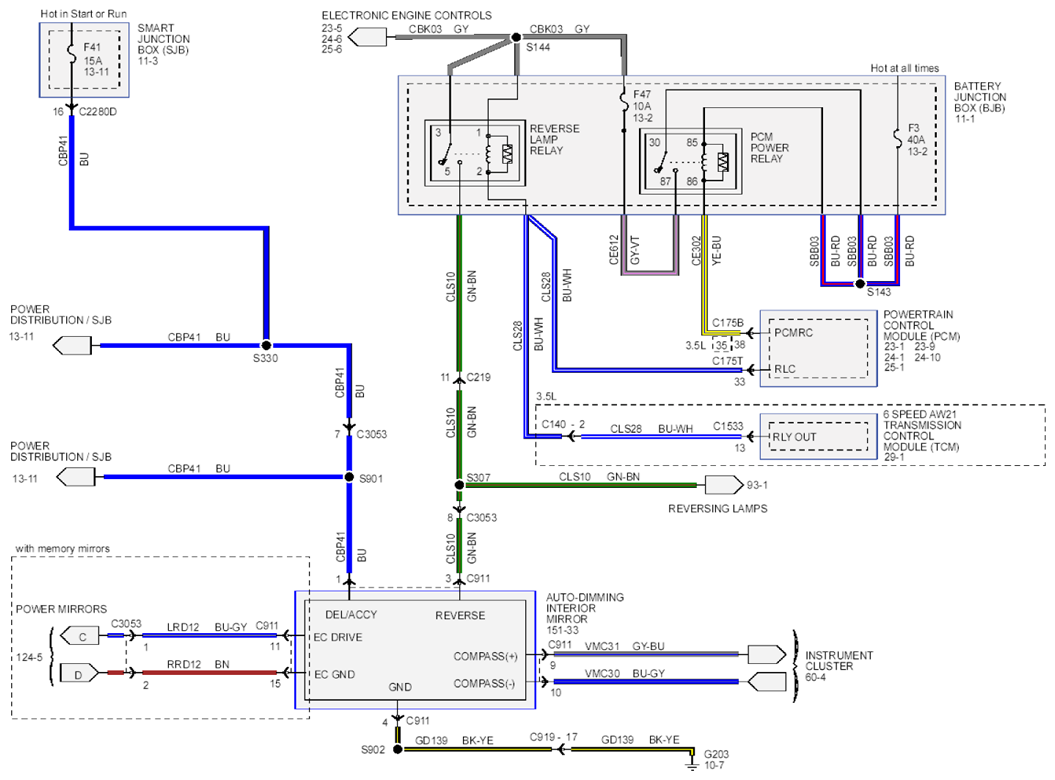

Fig 1: Memory Mirrors Wiring Diagram (1 Of 5)

Courtesy of FORD MOTOR CO.

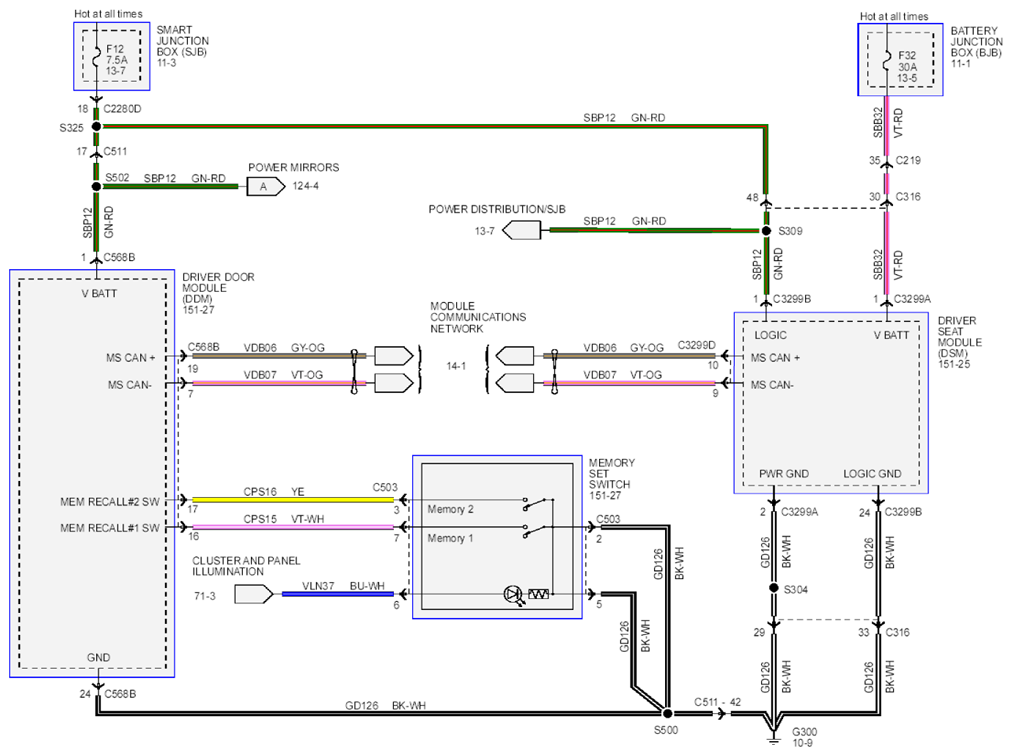

Fig 2: Memory Mirrors Wiring Diagram (2 Of 5)

Courtesy of FORD MOTOR CO.

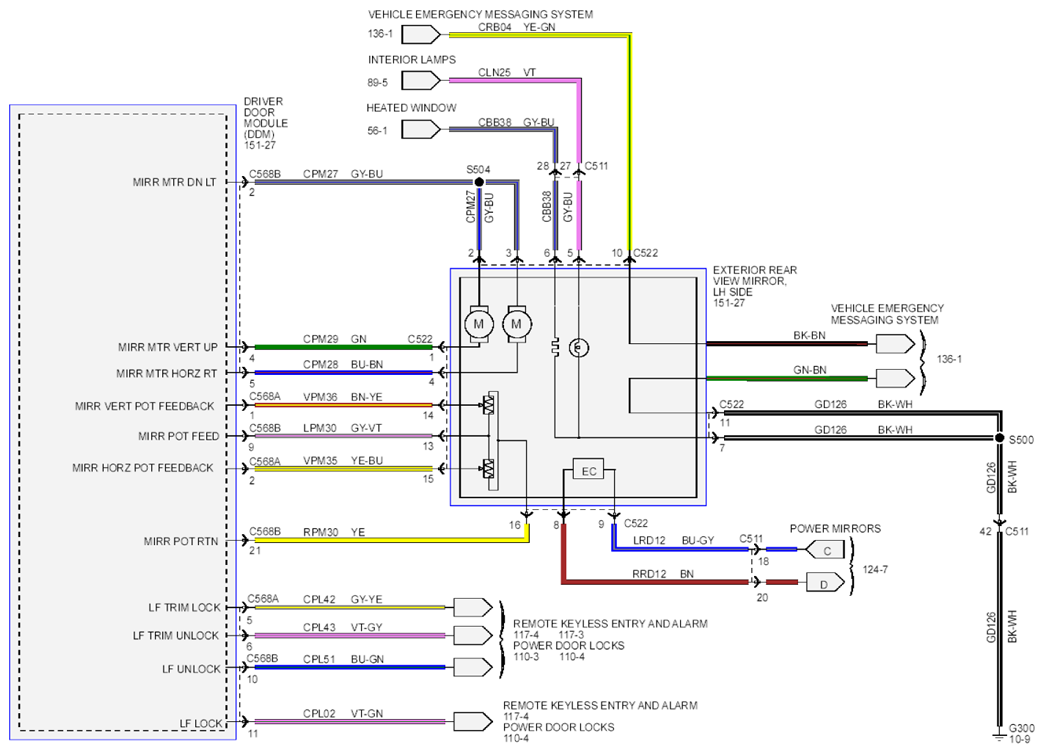

Fig 3: Memory Mirrors Wiring Diagram (3 Of 5)

Courtesy of FORD MOTOR CO.

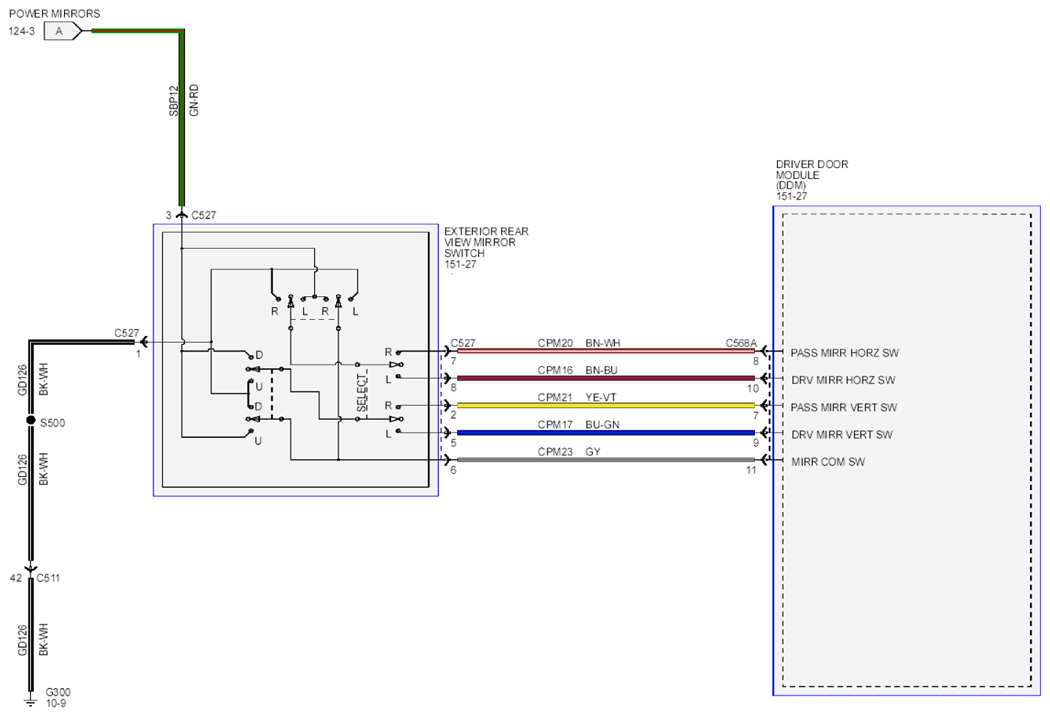

Fig 4: Memory Mirrors Wiring Diagram (4 Of 5)

Courtesy of FORD MOTOR CO.

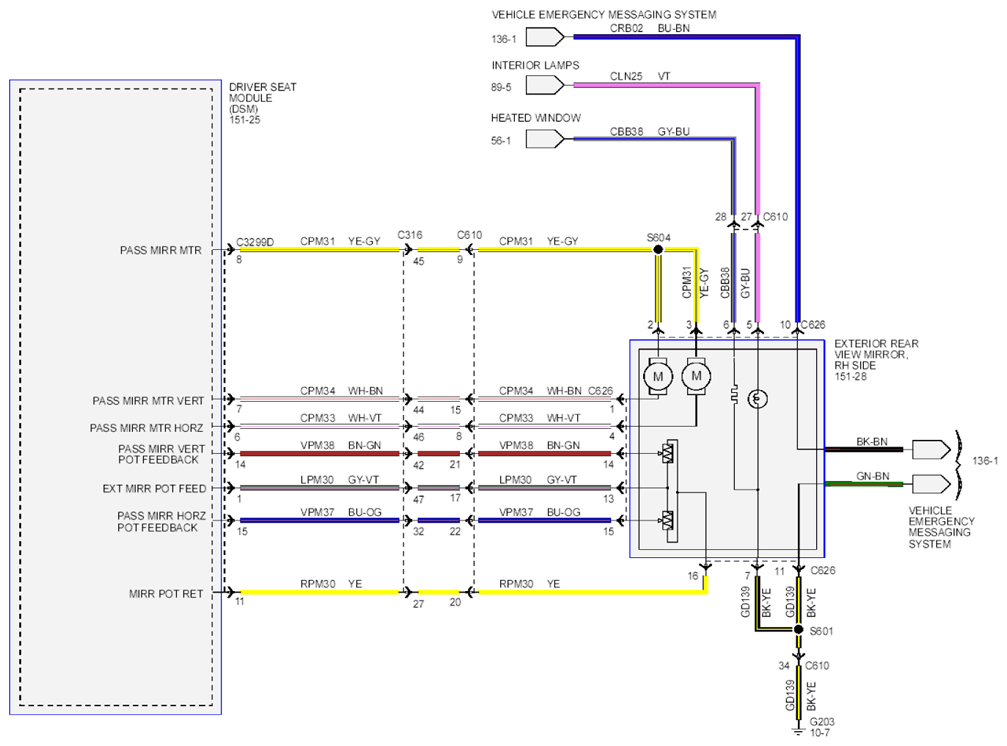

Fig 5: Memory Mirrors Wiring Diagram (5 Of 5)

Courtesy of FORD MOTOR CO.
