Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Power Mirrors
>>
Heated Mirrors
Heated Mirrors
WARNING:
This page is about a different variant/trim than selected.

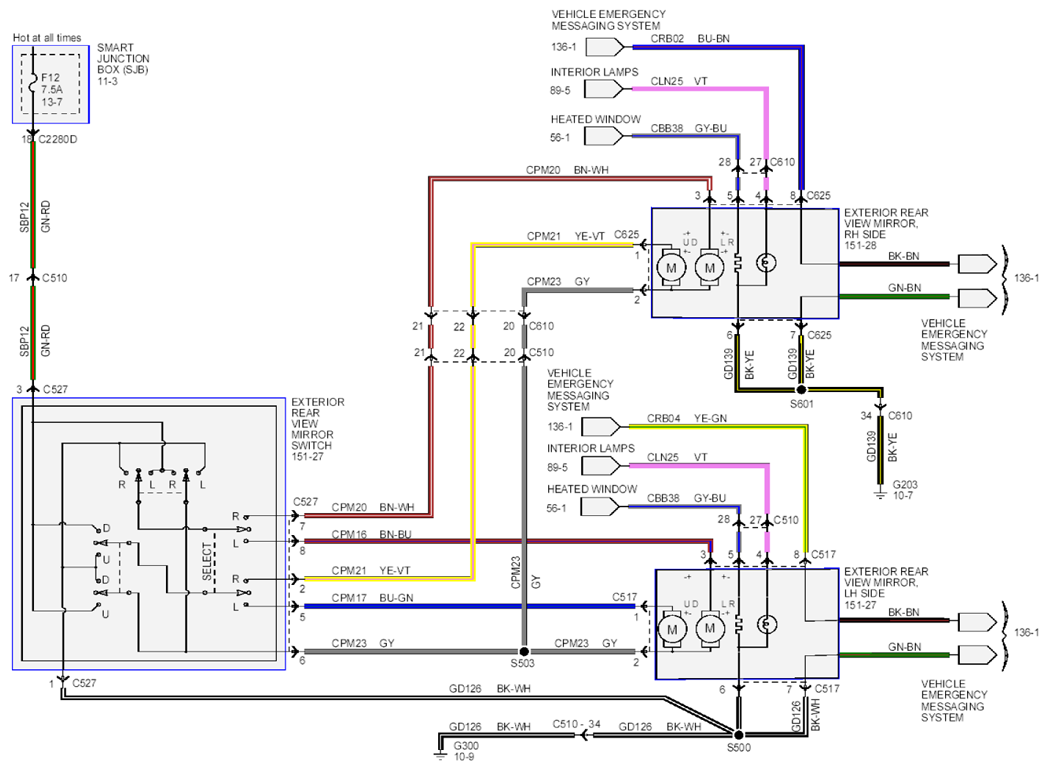

Fig 1: Heated Mirrors Wiring Diagram
Courtesy of FORD MOTOR CO.
