F43, F44, F45 (SJB), F45 (BJB)

WARNING: This page is about a different variant/trim than selected.

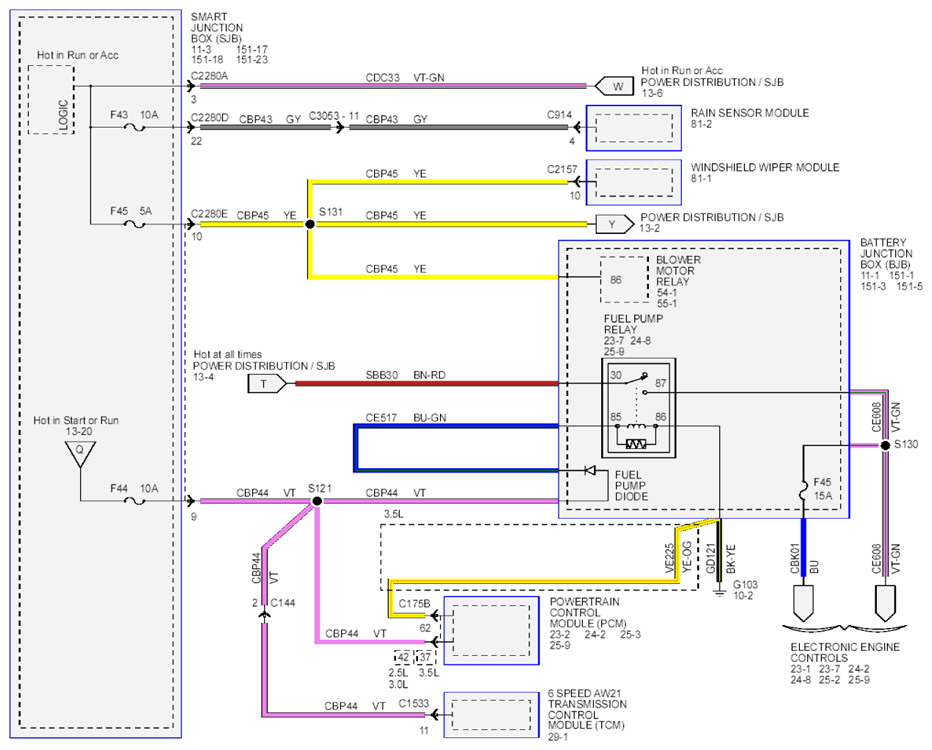

Fig 1: Power Distribution Circuit Diagram - F43, F44, F45 (SJB), F45 (BJB)
G07922635Courtesy of FORD MOTOR CO.
