F35, F46

WARNING: This page is about a different variant/trim than selected.

Fig 1: Power Distribution Circuit Diagram - F35, F46 (1 Of 4)

Courtesy of FORD MOTOR CO.

Fig 2: Power Distribution Circuit Diagram - F35, F46 (2 Of 4)

Courtesy of FORD MOTOR CO.

Fig 3: Power Distribution Circuit Diagram - F35, F46 (3 Of 4)

Courtesy of FORD MOTOR CO.

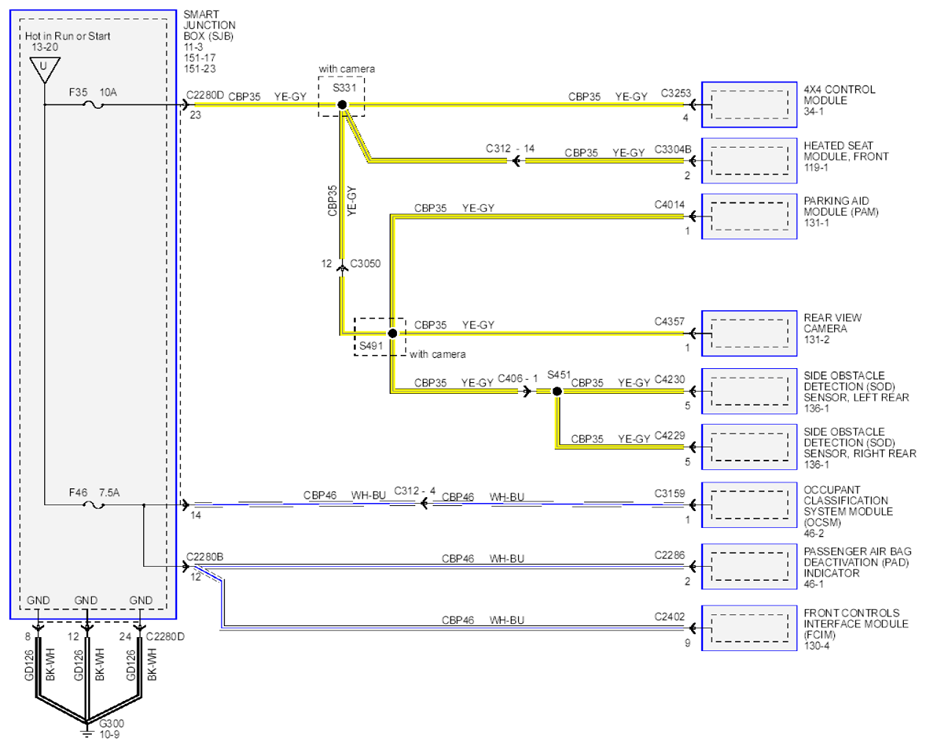

Fig 4: Power Distribution Circuit Diagram - F35, F46 (4 Of 4)

Courtesy of FORD MOTOR CO.
