Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Power Distribution_SJB
>>
F31, F32, F33, F35
F31, F32, F33, F35
WARNING:
This page is about a different variant/trim than selected.

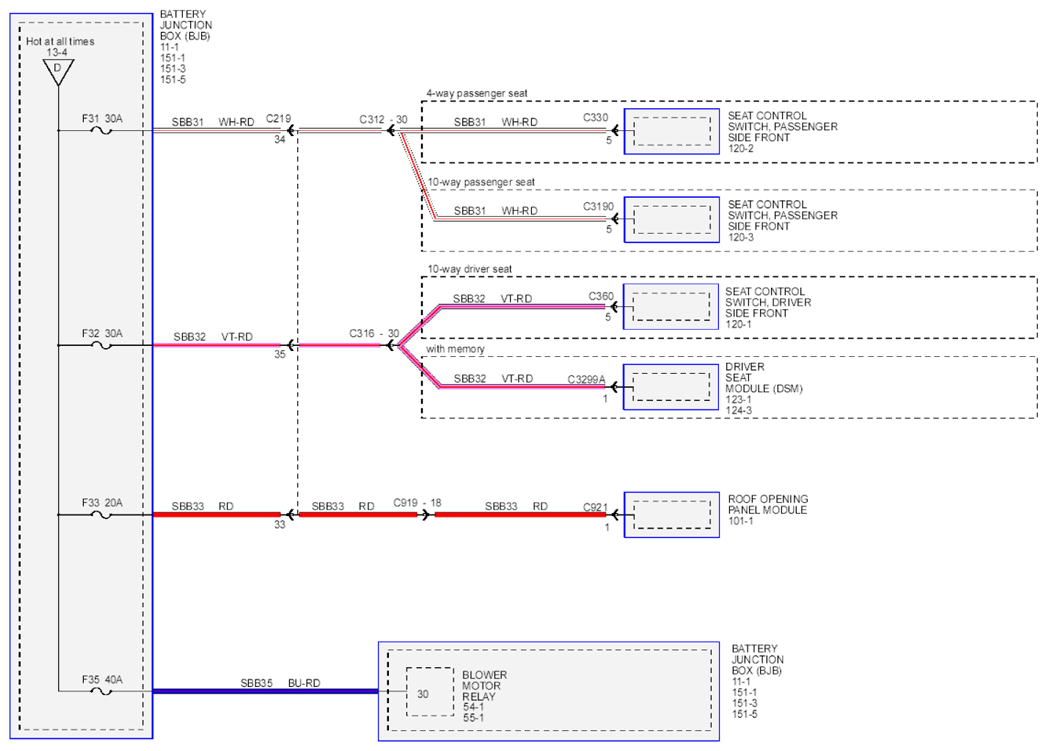

Fig 1: Power Distribution Circuit Diagram - F31, F32, F33, F35
Courtesy of FORD MOTOR CO.
