F3, F5, F6, F46, F47, F48, F49

WARNING: This page is about a different variant/trim than selected.

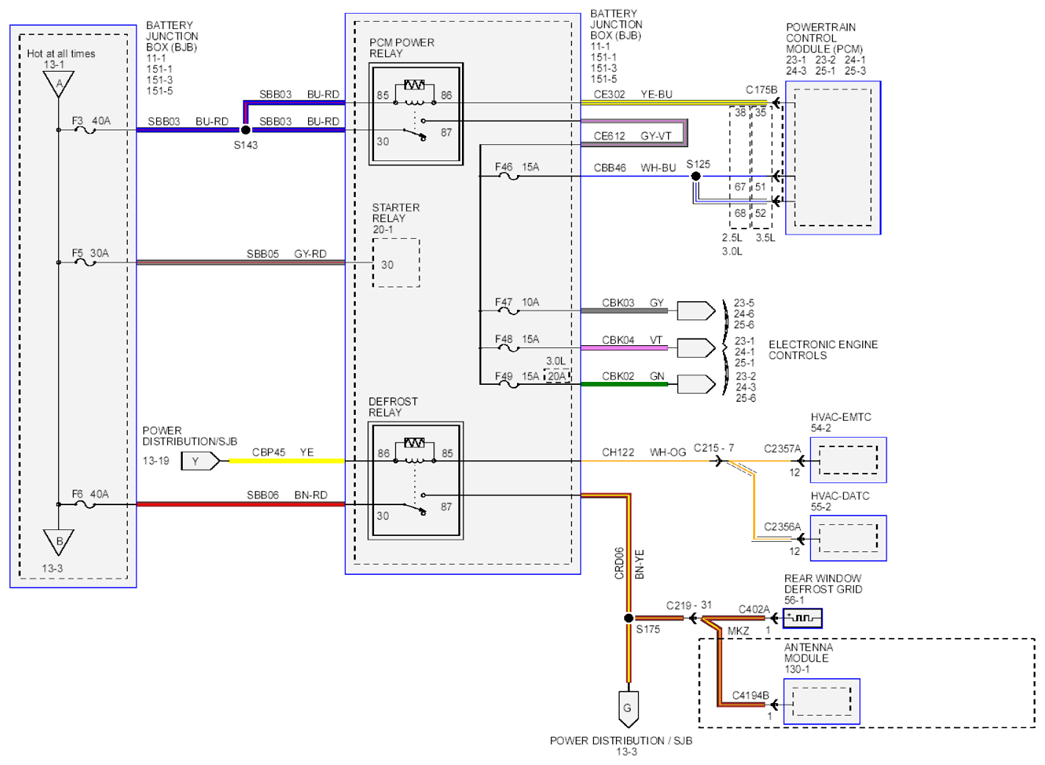

Fig 1: Power Distribution Circuit Diagram - F3, F5, F6, F46, F47, F48, F49
G07922618Courtesy of FORD MOTOR CO.
