F23, F25, F26, F27, F28, F29, F30

WARNING: This page is about a different variant/trim than selected.

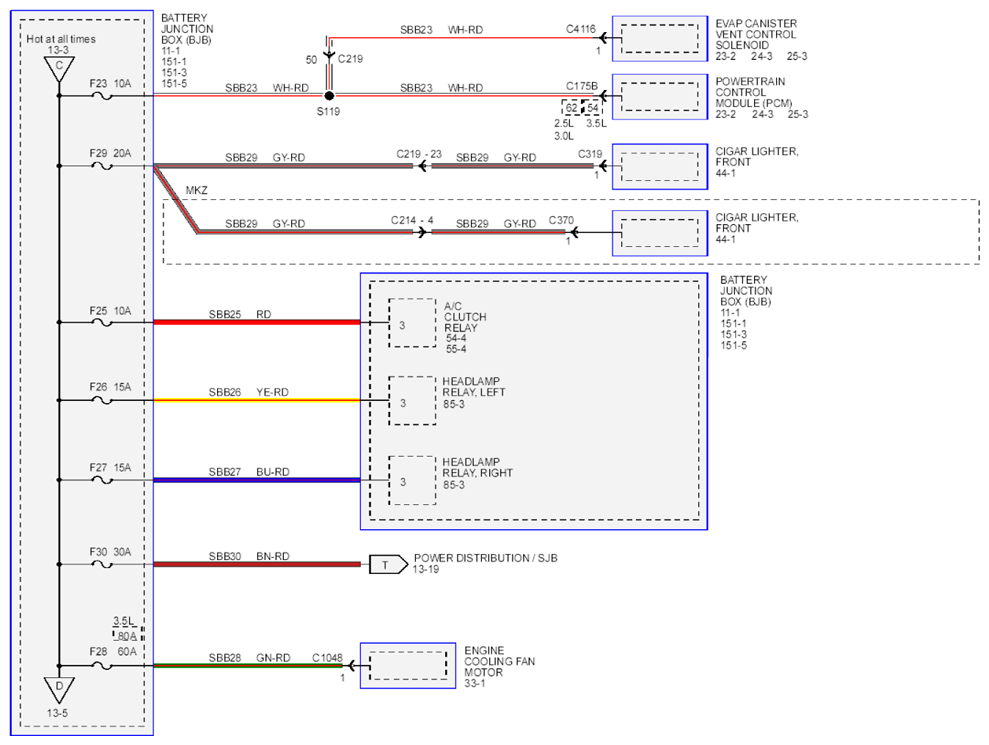

Fig 1: Power Distribution Circuit Diagram - F23, F25, F26, F27, F28, F29, F30
G07922620Courtesy of FORD MOTOR CO.
