Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Power Distribution_SJB
>>
F21, F23, F24
F21, F23, F24
WARNING:
This page is about a different variant/trim than selected.

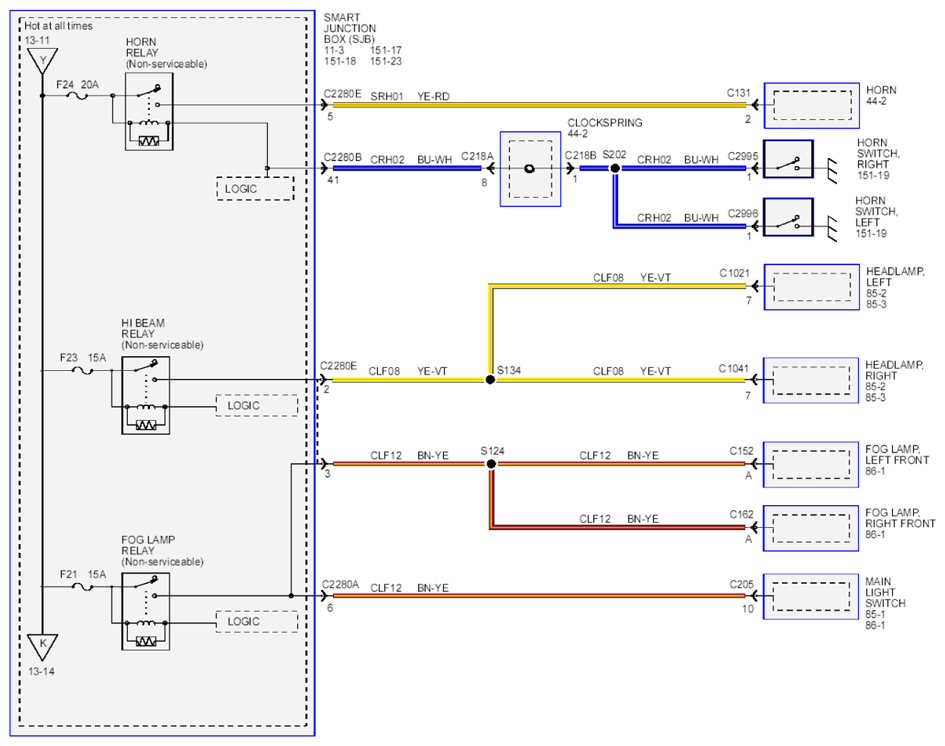

Fig 1: Power Distribution Circuit Diagram - F21, F23, F24
Courtesy of FORD MOTOR CO.
