Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Power Distribution_SJB
>>
F11, F12, F13, F15
F11, F12, F13, F15
WARNING:
This page is about a different variant/trim than selected.

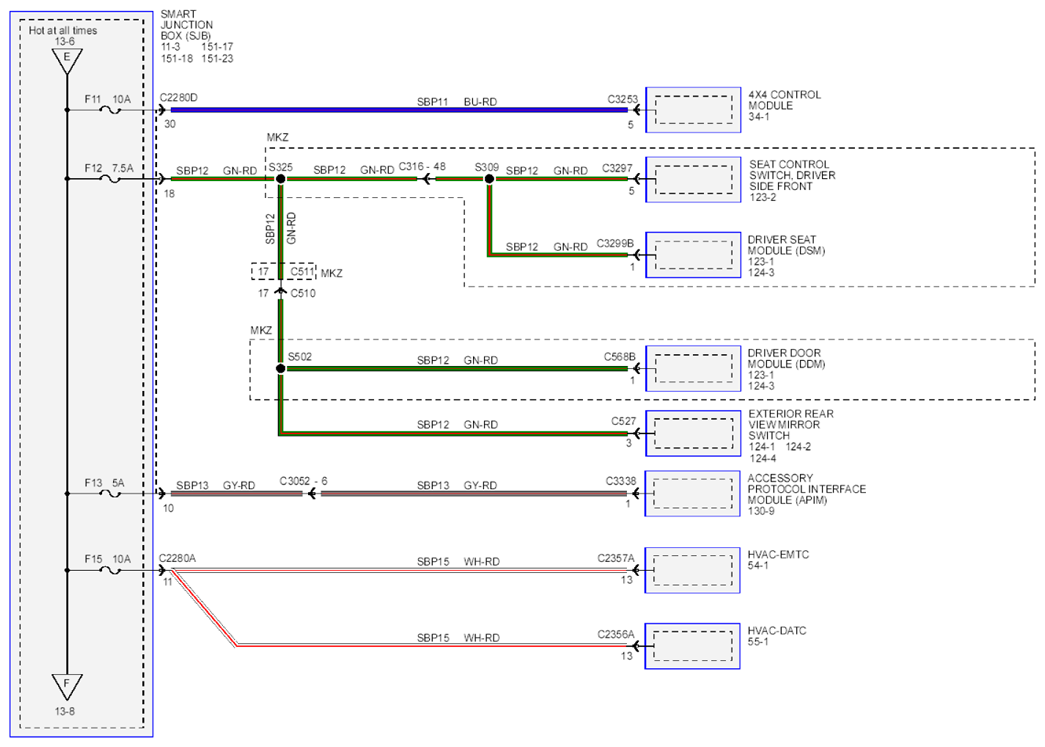

Fig 1: Power Distribution Circuit Diagram - F11, F12, F13, F15
Courtesy of FORD MOTOR CO.
