Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Power Distribution_SJB
>>
F1, F2, F4, F27
F1, F2, F4, F27
WARNING:
This page is about a different variant/trim than selected.

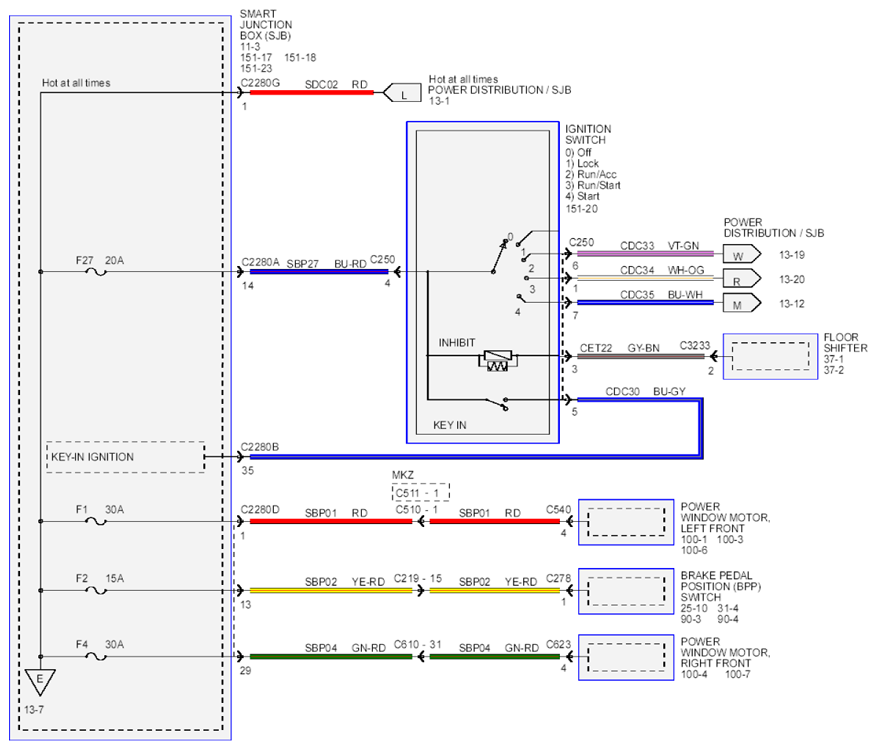

Fig 1: Power Distribution Circuit Diagram - F1, F2, F4, F27
Courtesy of FORD MOTOR CO.
