Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Passive Anti-Theft System
Passive Anti-Theft System
WARNING:
This page is about a different variant/trim than selected.

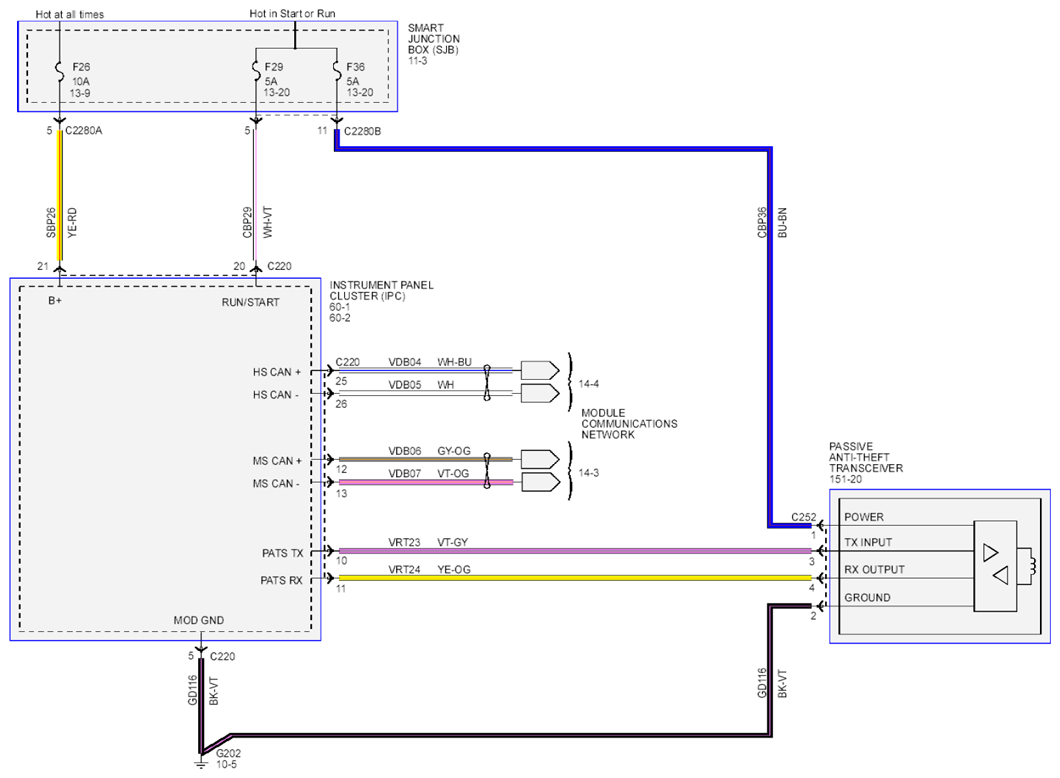

Fig 1: Passive Anti-Theft System Wiring Diagram
Courtesy of FORD MOTOR CO.
