Parking Rear and License Lamps: Fusion

WARNING: This page is about a different variant/trim than selected.
Fig 1: Parking Rear And License Lamps Wiring Diagram - Fusion (1 Of 2)
G07922742Courtesy of FORD MOTOR CO.

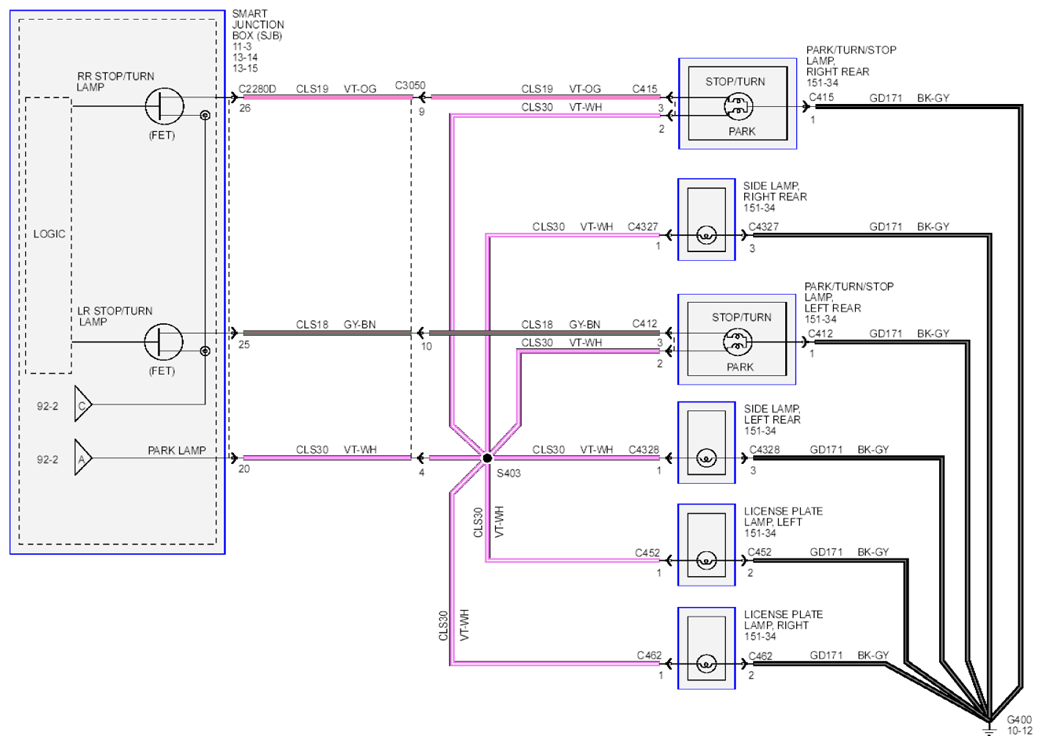

Fig 2: Parking Rear And License Lamps Wiring Diagram - Fusion (2 Of 2)
G07922743Courtesy of FORD MOTOR CO.
