Memory Seats

WARNING: This page is about a different variant/trim than selected.

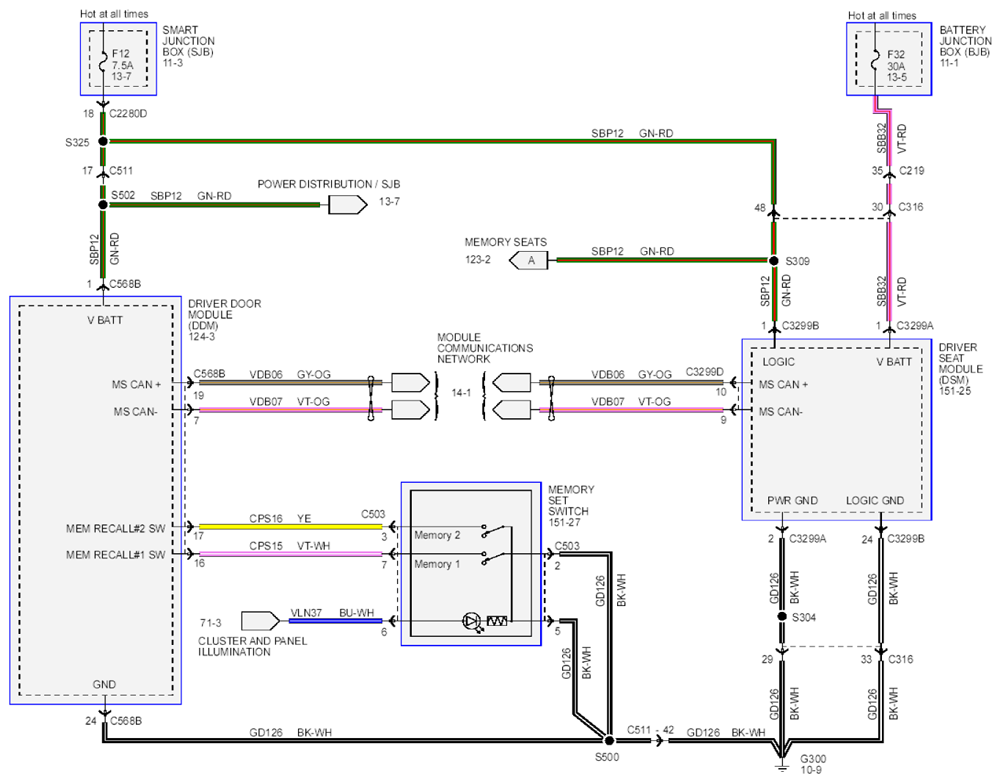

Fig 1: Memory Seats Wiring Diagram (1 Of 3)
G07922776Courtesy of FORD MOTOR CO.

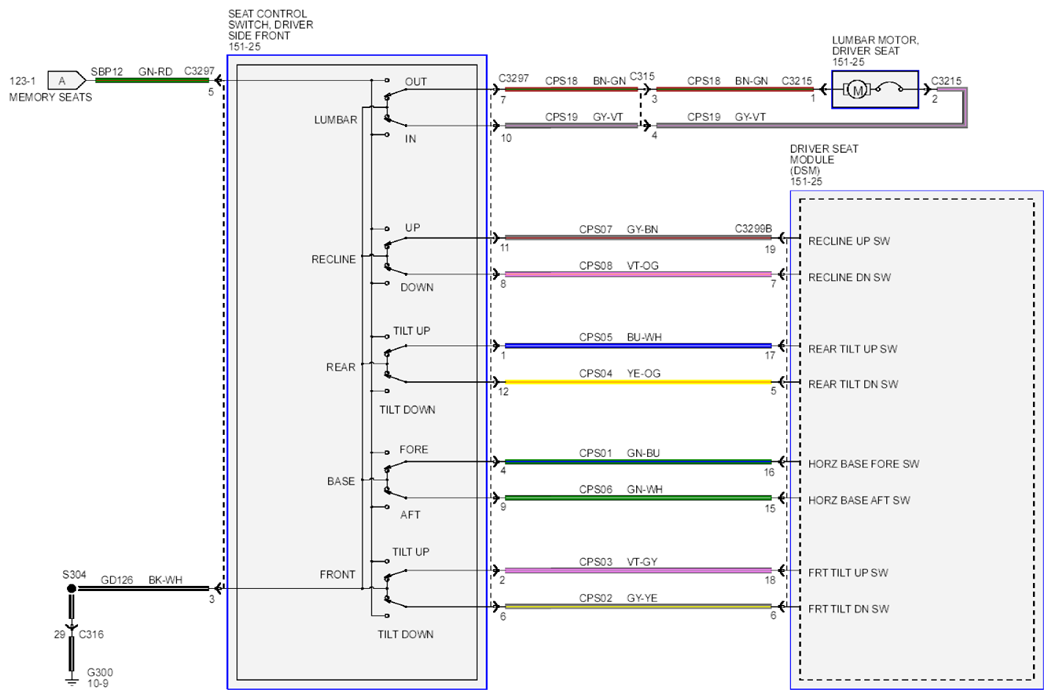

Fig 2: Memory Seats Wiring Diagram (2 Of 3)
G07922777Courtesy of FORD MOTOR CO.

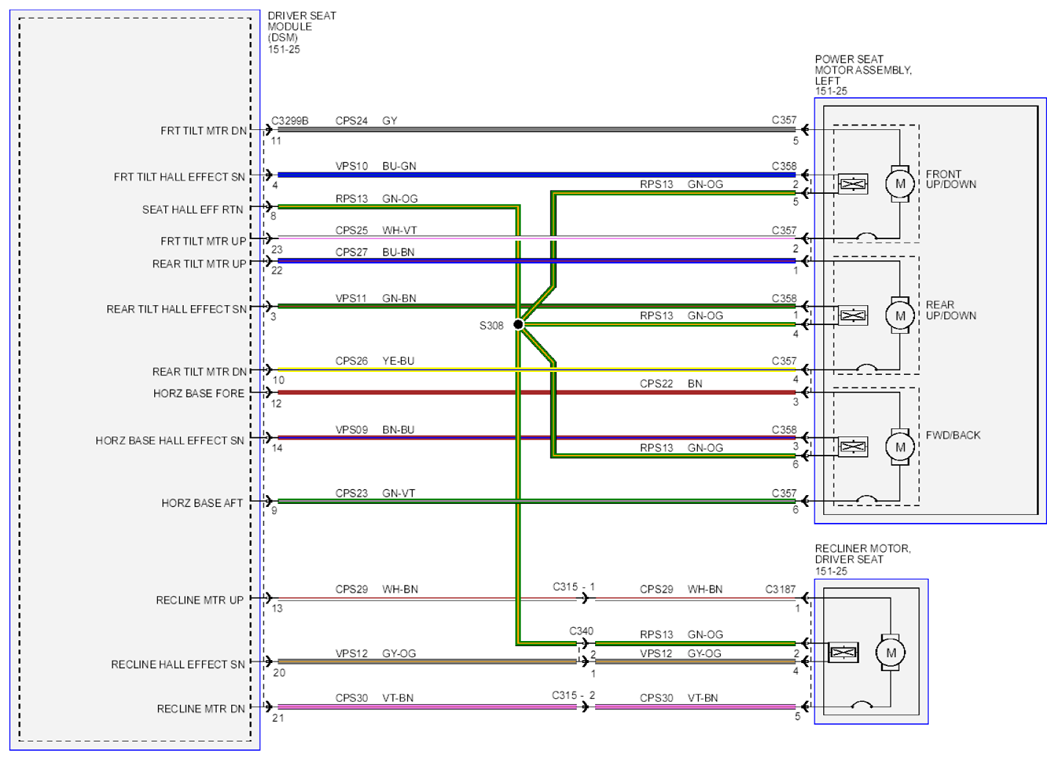

Fig 3: Memory Seats Wiring Diagram (3 Of 3)
G07922778Courtesy of FORD MOTOR CO.
