Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Manual Climate Control System
Manual Climate Control System
WARNING:
This page is about a different variant/trim than selected.

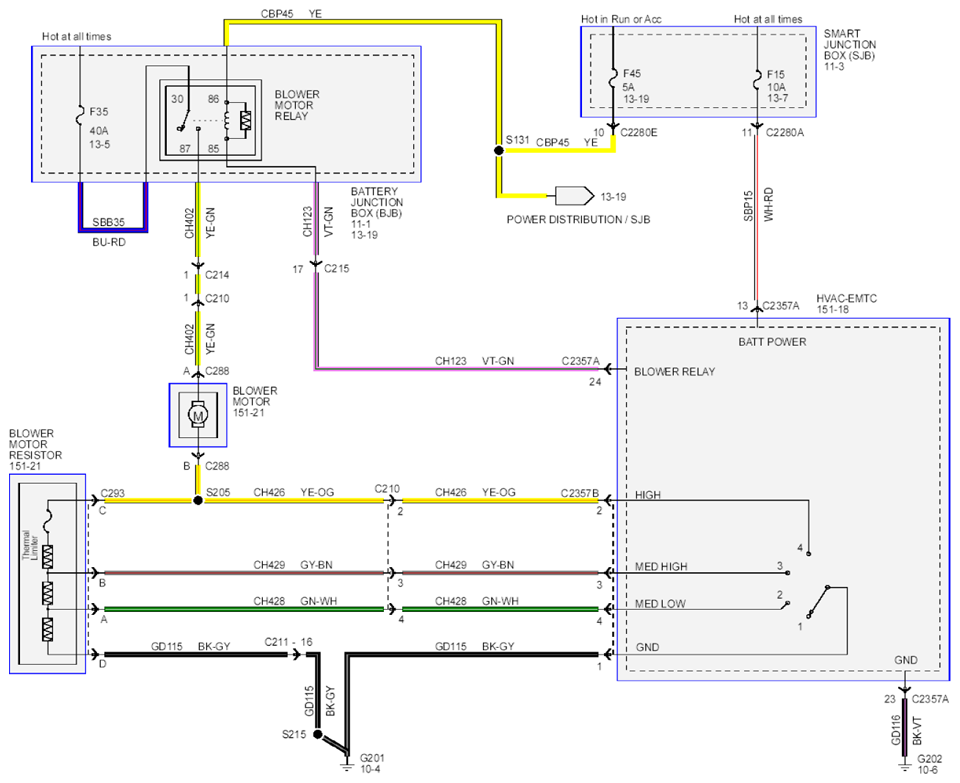

Fig 1: Manual Climate Control System Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

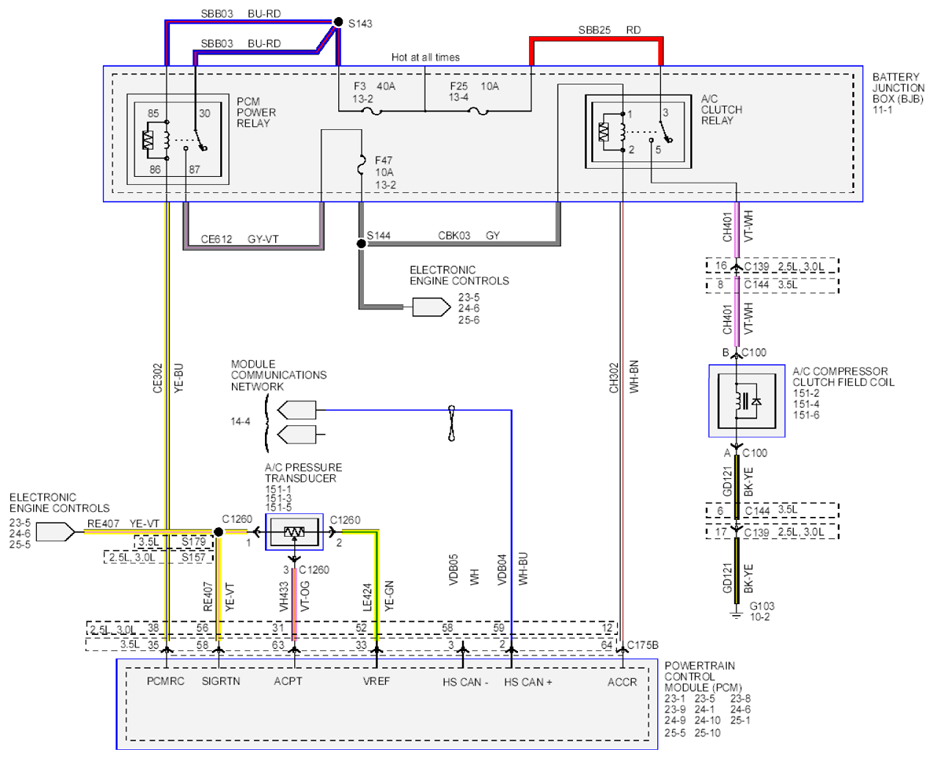

Fig 2: Manual Climate Control System Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

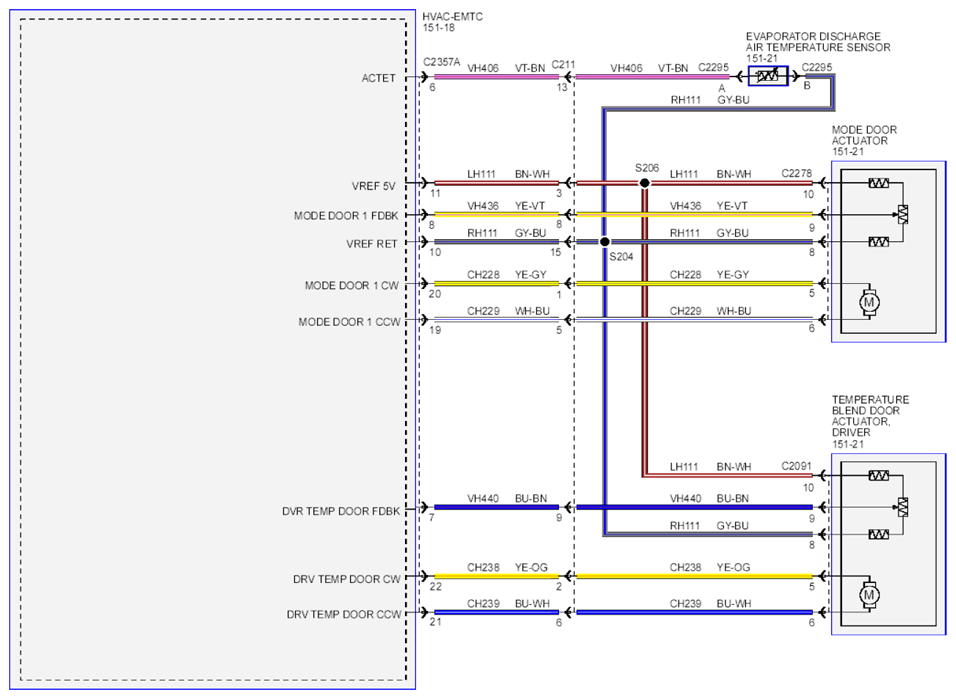

Fig 3: Manual Climate Control System Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

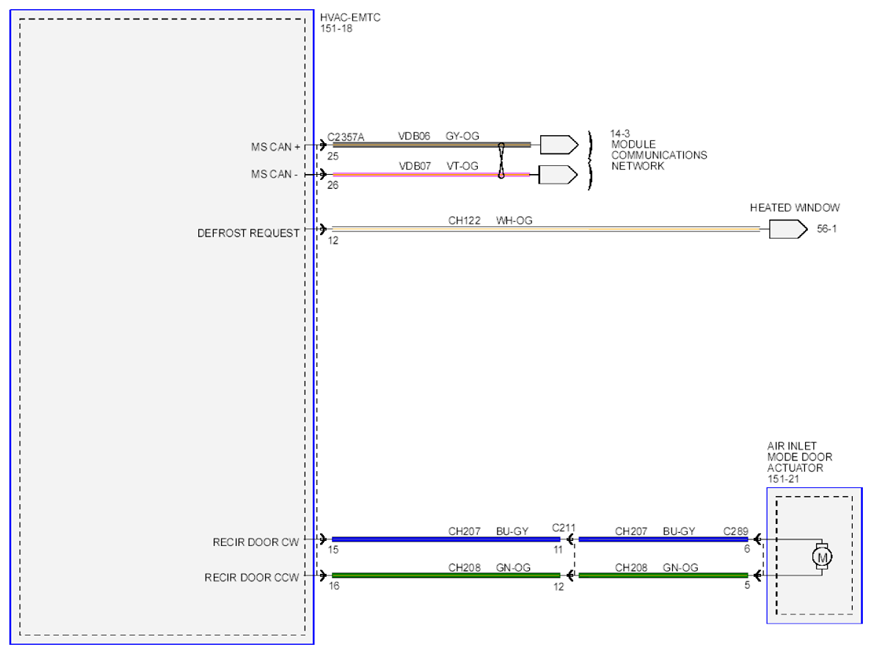

Fig 4: Manual Climate Control System Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
