Section 27 (OEM Wiring Diagrams (Except Hybrid)): MKZ

WARNING: This page is about a different variant/trim than selected.

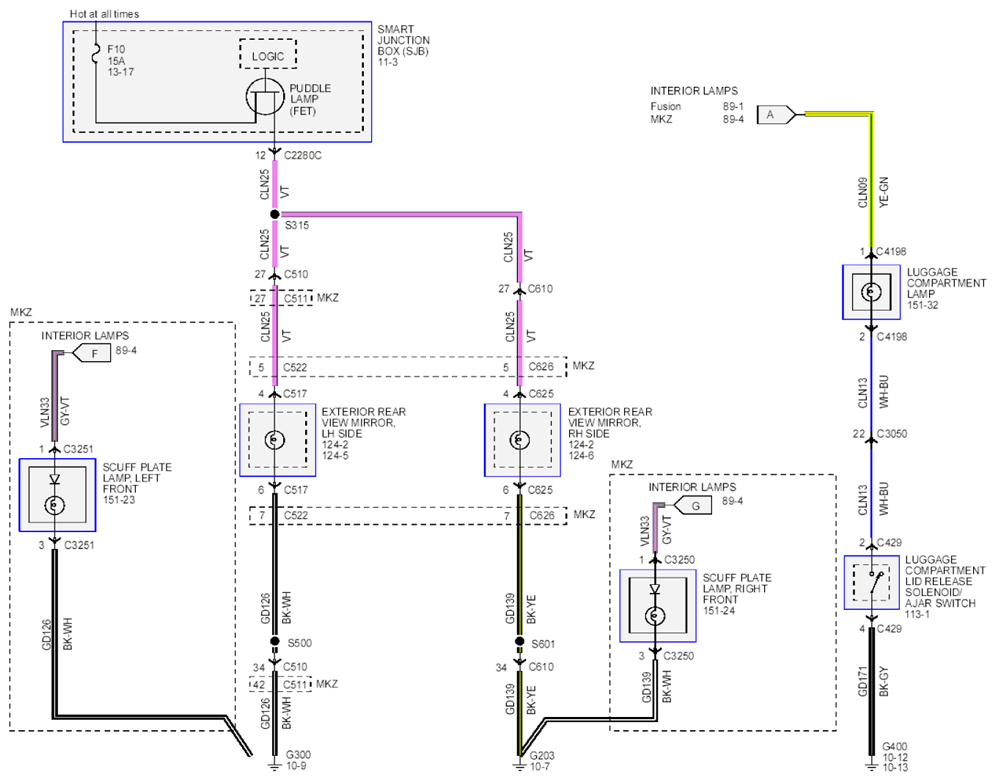

Fig 1: Interior Lamps Wiring Diagram - MKZ (1 Of 7)

Courtesy of FORD MOTOR CO.

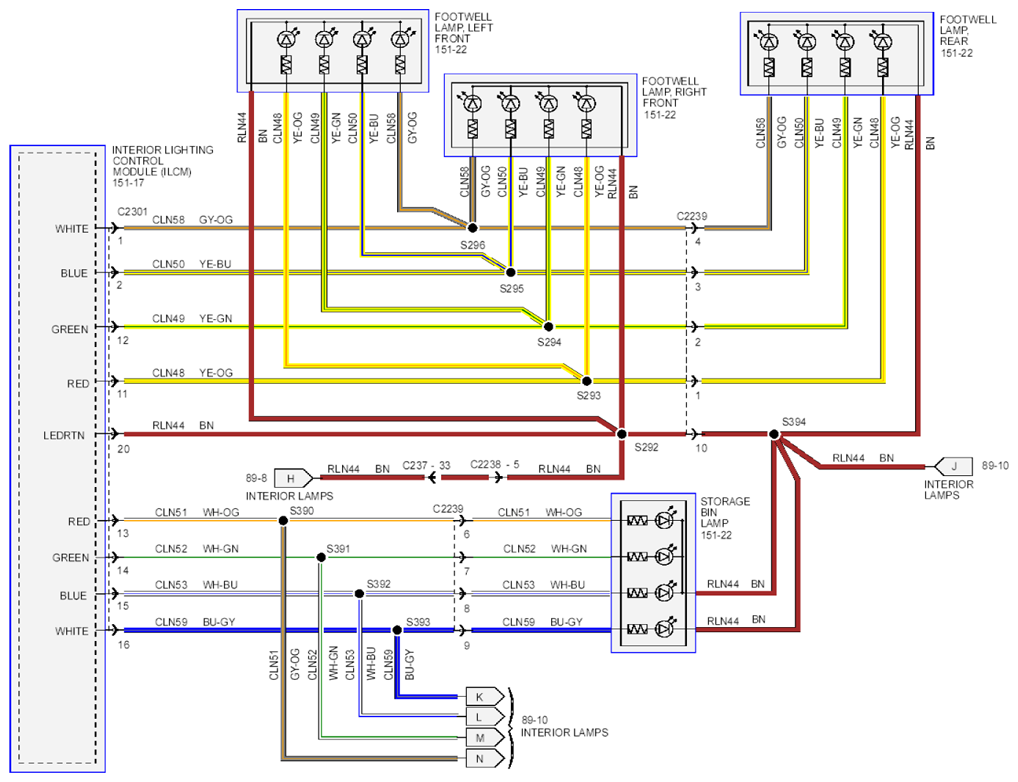

Fig 2: Interior Lamps Wiring Diagram - MKZ (2 Of 7)

Courtesy of FORD MOTOR CO.

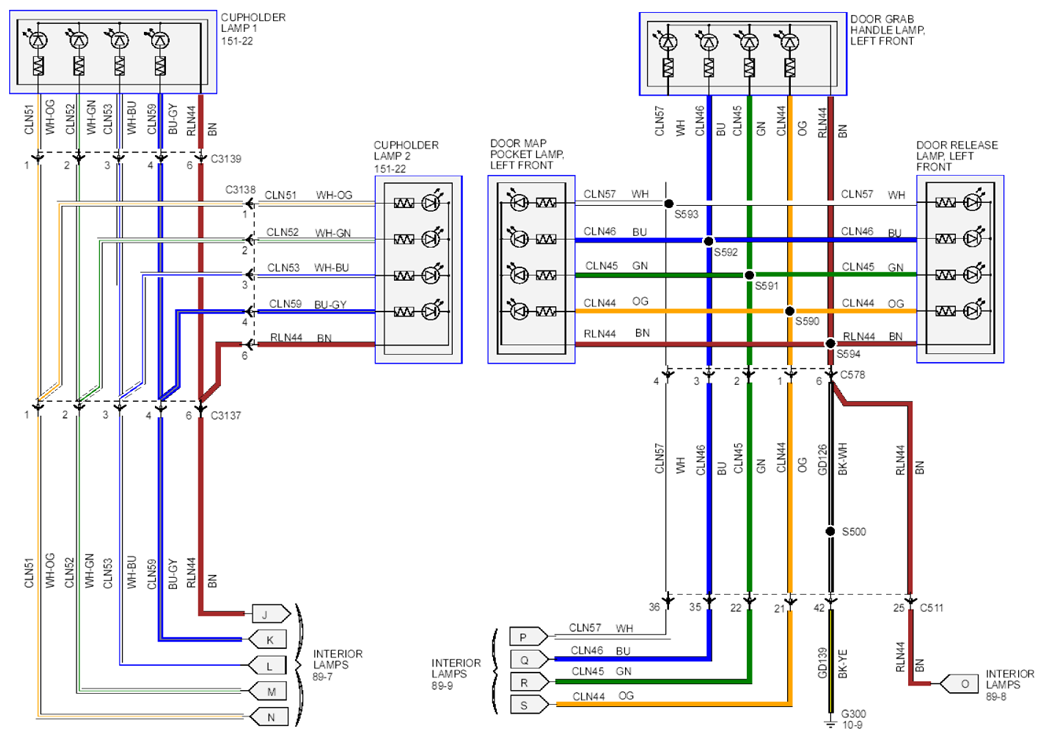

Fig 3: Interior Lamps Wiring Diagram - MKZ (3 Of 7)

Courtesy of FORD MOTOR CO.

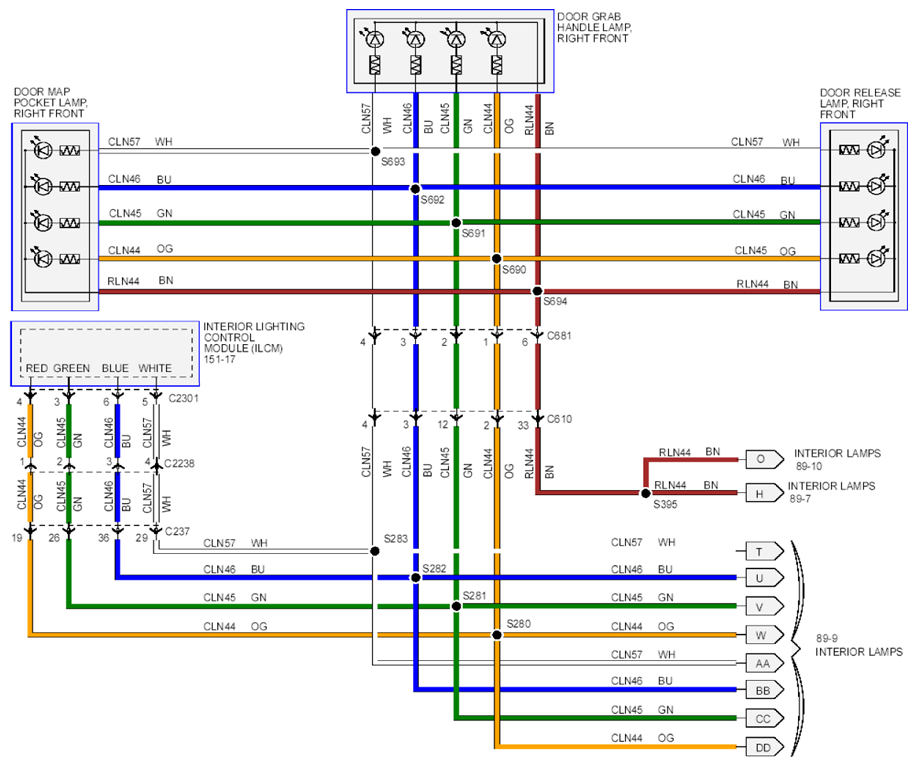

Fig 4: Interior Lamps Wiring Diagram - MKZ (4 Of 7)

Courtesy of FORD MOTOR CO.

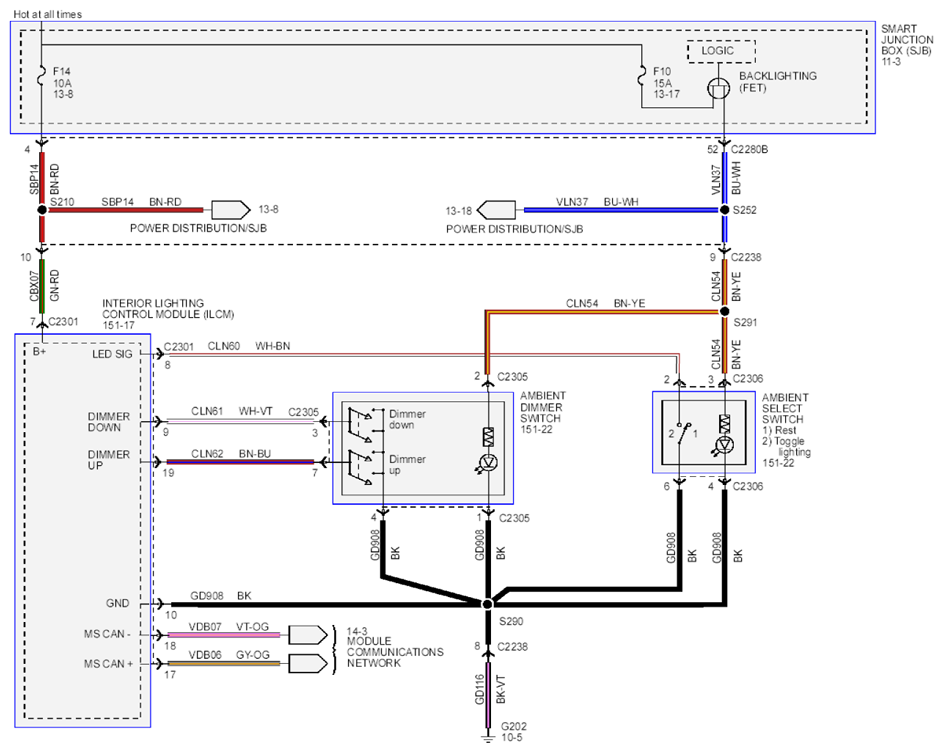

Fig 5: Interior Lamps Wiring Diagram - MKZ (5 Of 7)

Courtesy of FORD MOTOR CO.

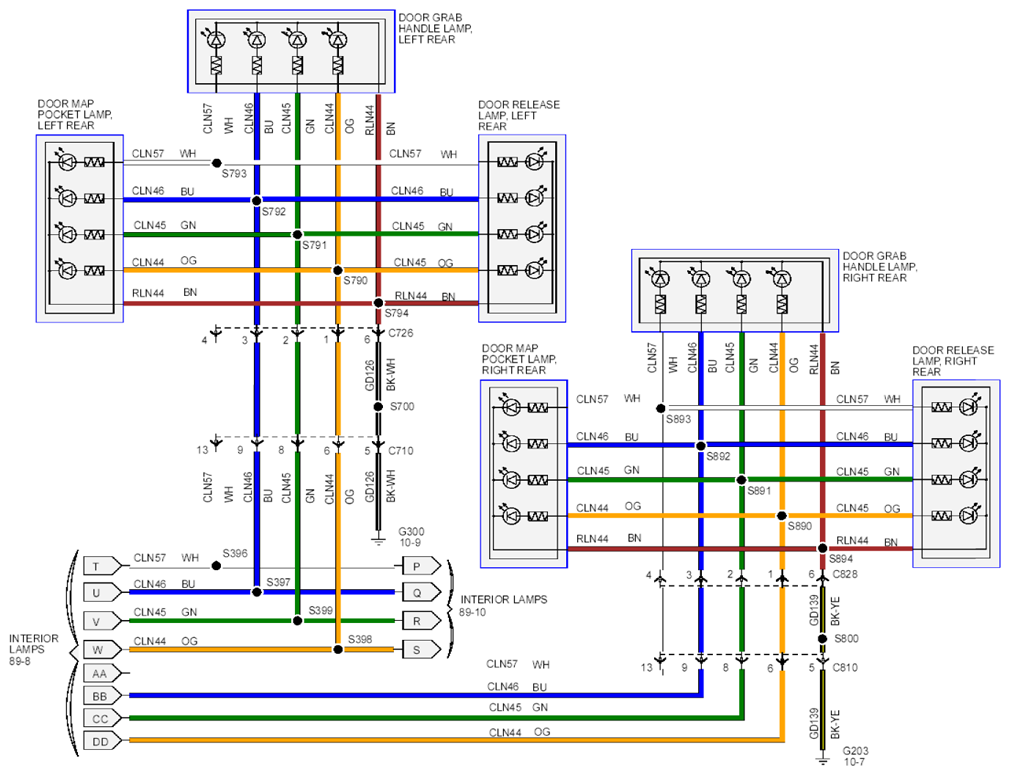

Fig 6: Interior Lamps Wiring Diagram - MKZ (6 Of 7)

Courtesy of FORD MOTOR CO.

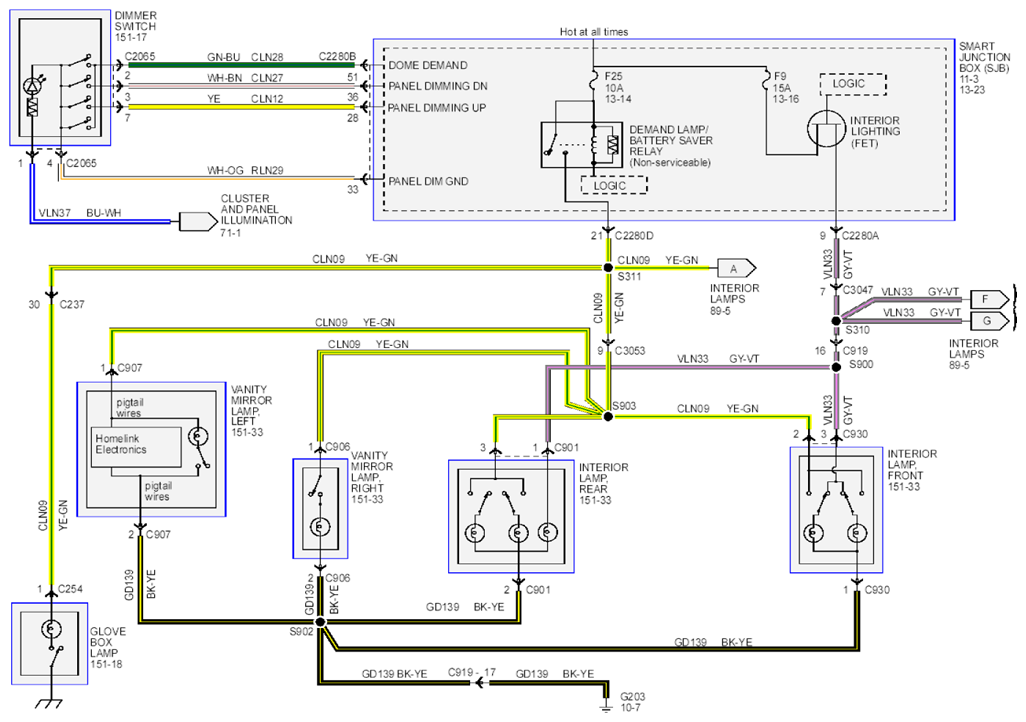

Fig 7: Interior Lamps Wiring Diagram - MKZ (7 Of 7)

Courtesy of FORD MOTOR CO.
