Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Heated Window
Heated Window
WARNING:
This page is about a different variant/trim than selected.

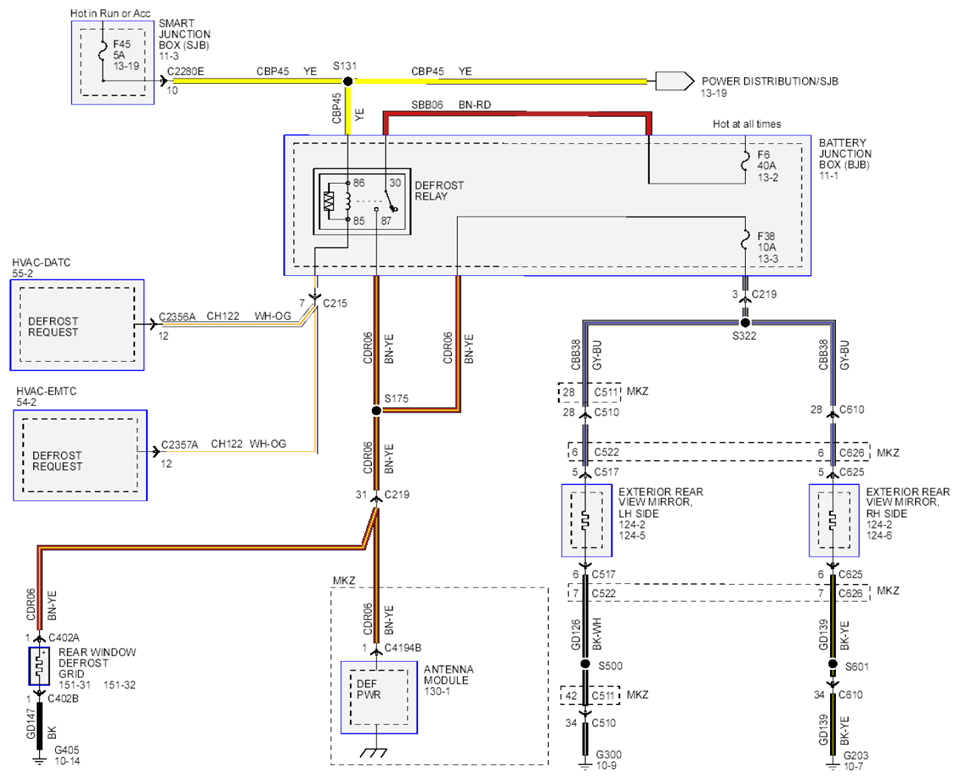

Fig 1: Heated Window Wiring Diagram
Courtesy of FORD MOTOR CO.
