Electronic Engine Controls - 2.5L

WARNING: This page is about a different variant/trim than selected.

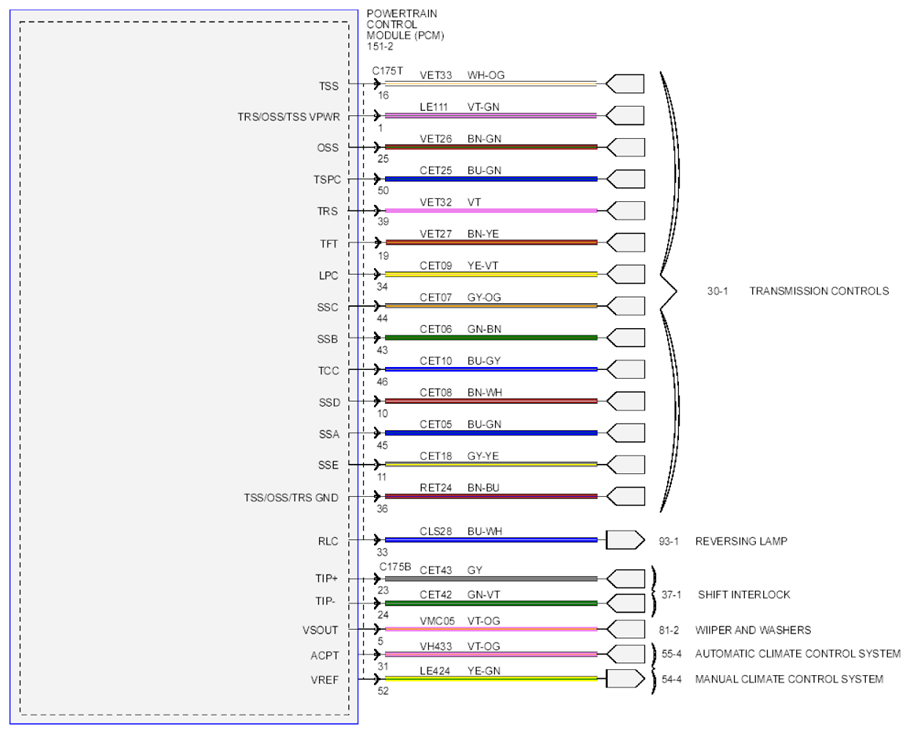

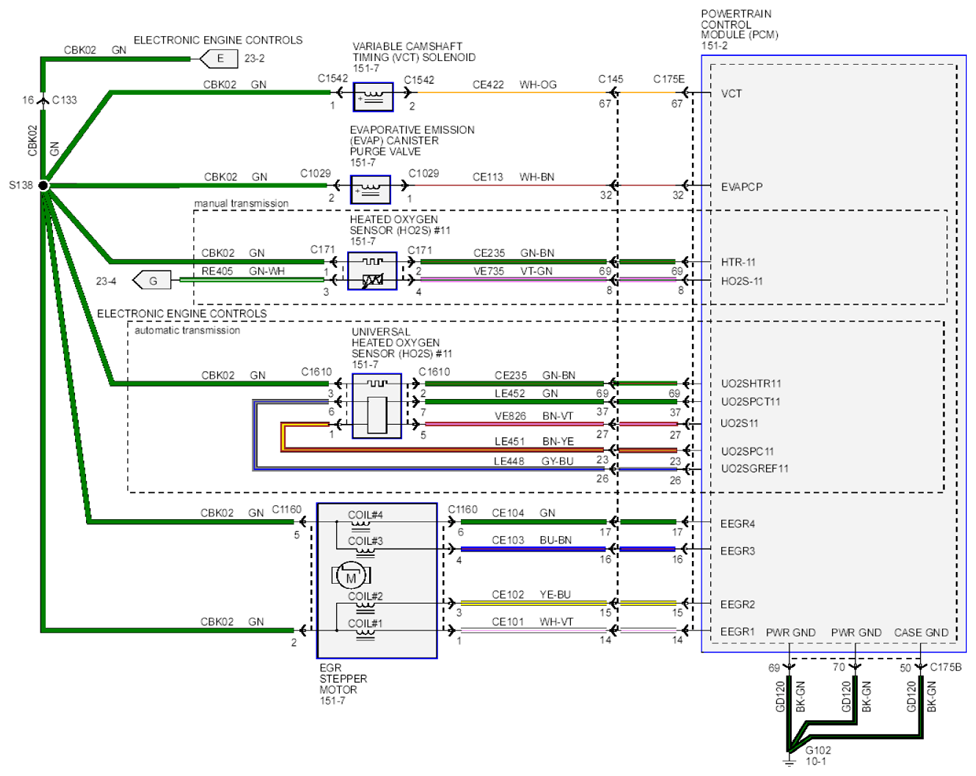

Fig 1: Electronic Engine Controls Wiring Diagrams - 2.5L (1 Of 9)

Courtesy of FORD MOTOR CO.

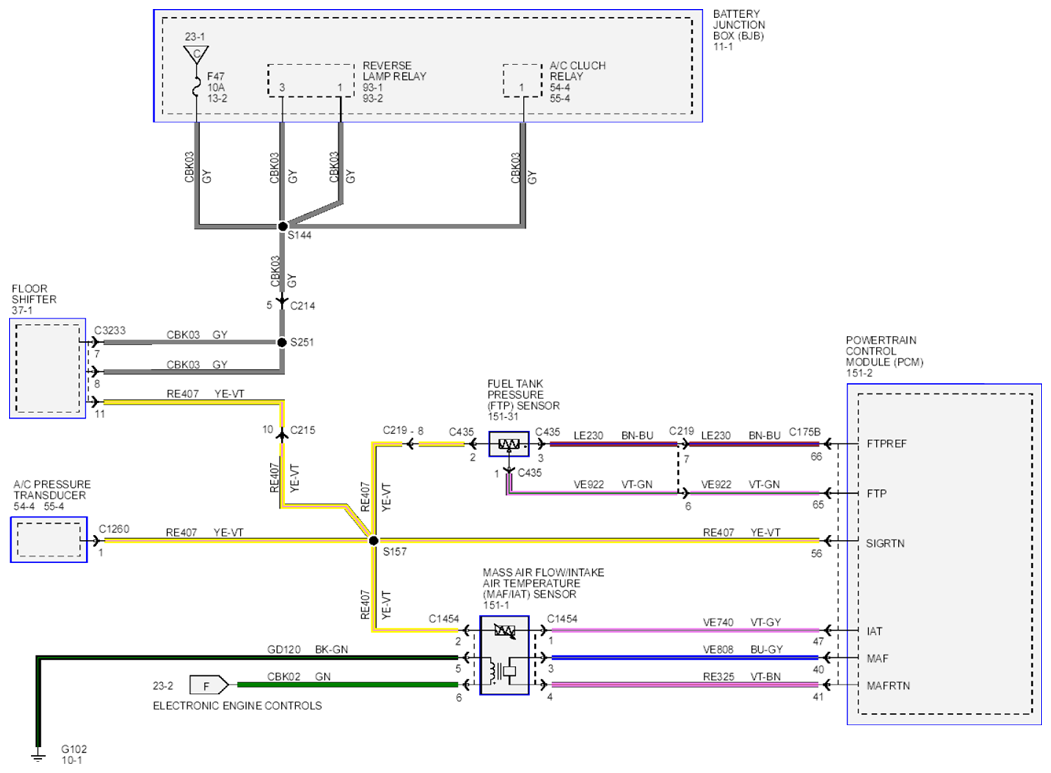

Fig 2: Electronic Engine Controls Wiring Diagrams - 2.5L (2 Of 9)

Courtesy of FORD MOTOR CO.

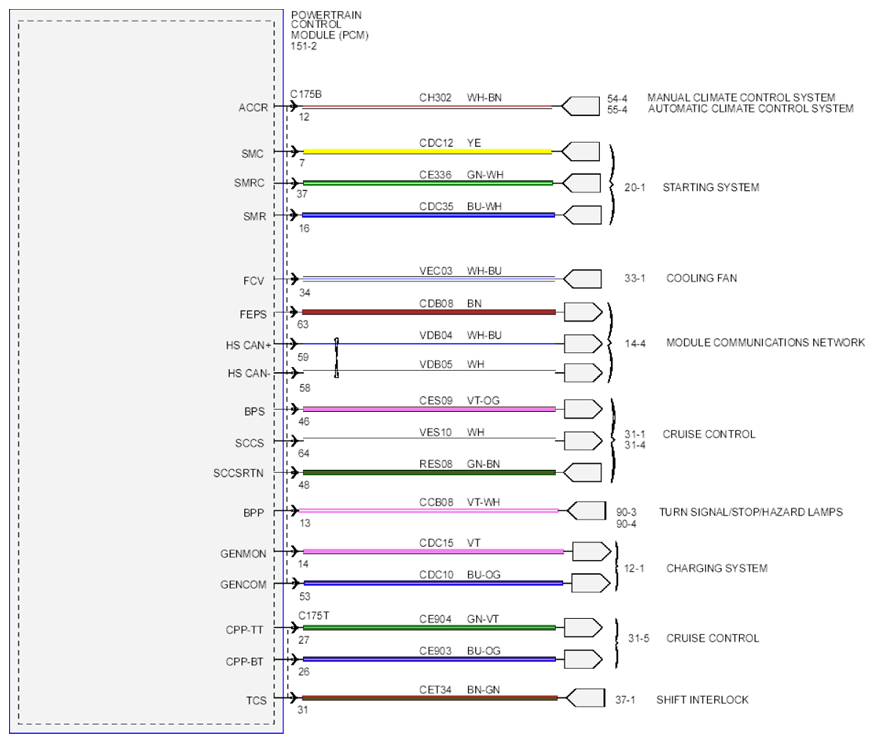

Fig 3: Electronic Engine Controls Wiring Diagrams - 2.5L (3 Of 9)

Courtesy of FORD MOTOR CO.

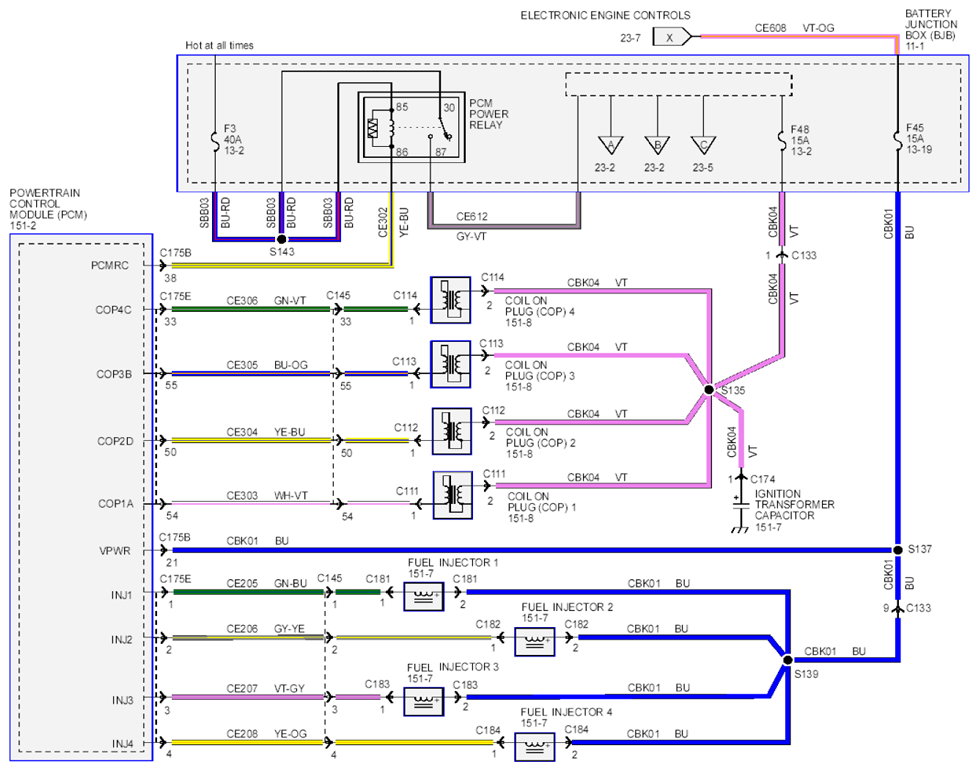

Fig 4: Electronic Engine Controls Wiring Diagrams - 2.5L (4 Of 9)

Courtesy of FORD MOTOR CO.

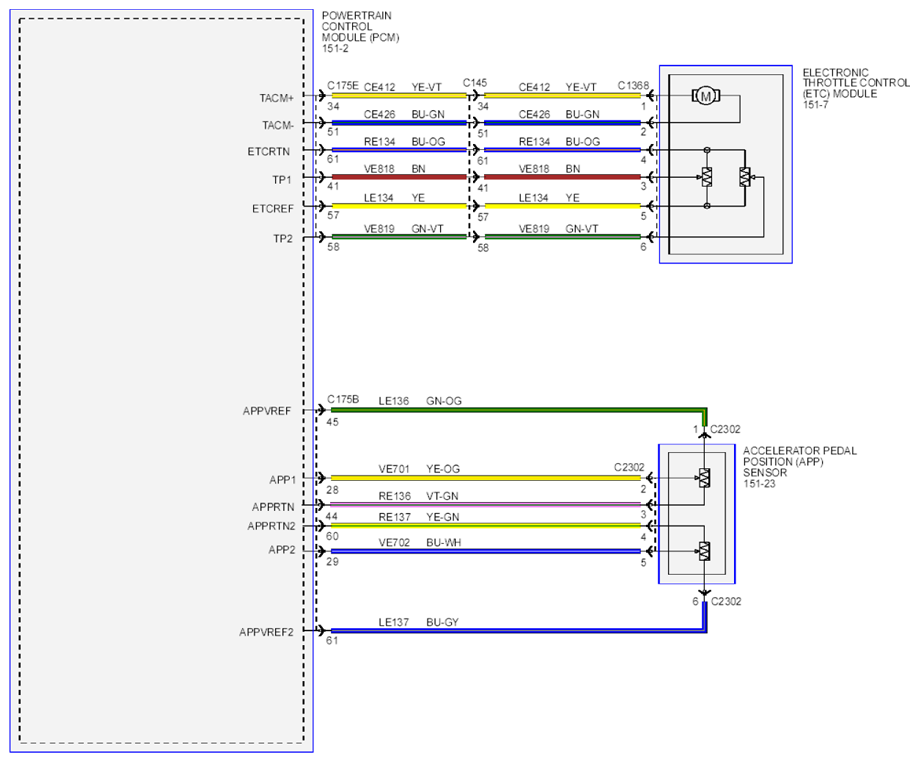

Fig 5: Electronic Engine Controls Wiring Diagrams - 2.5L (5 Of 9)

Courtesy of FORD MOTOR CO.

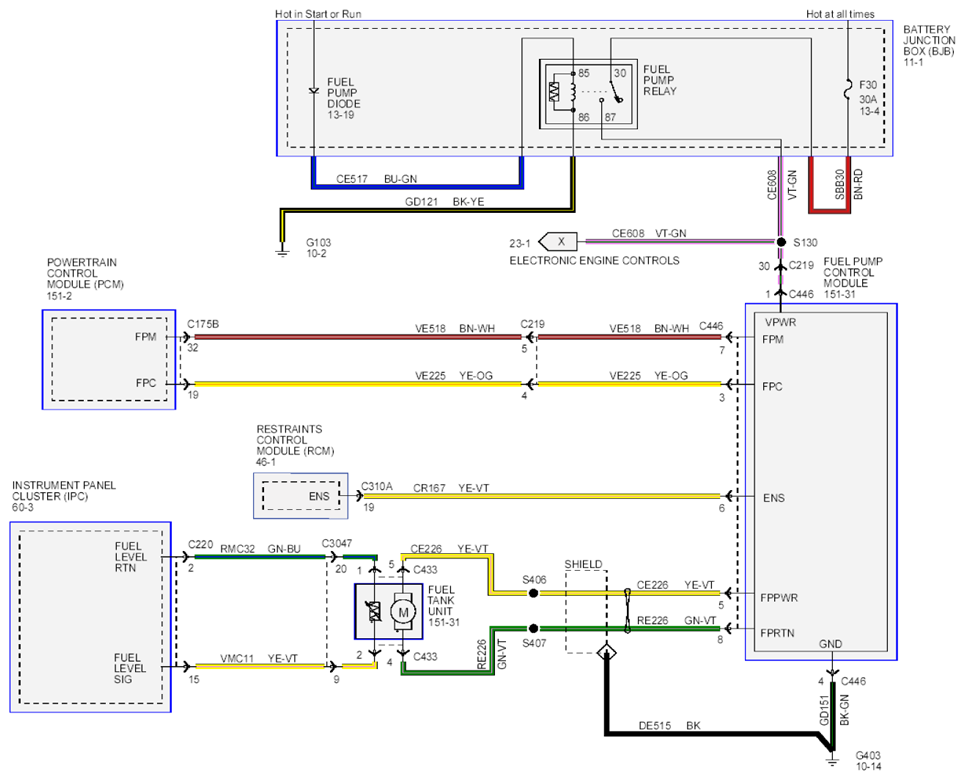

Fig 6: Electronic Engine Controls Wiring Diagrams - 2.5L (6 Of 9)

Courtesy of FORD MOTOR CO.

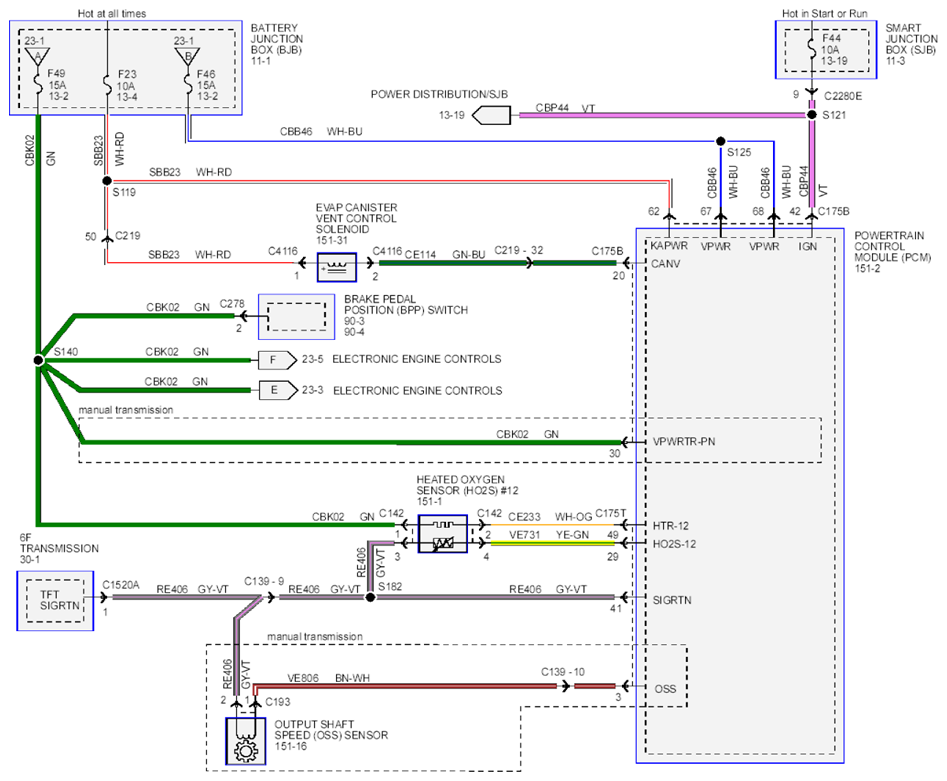

Fig 7: Electronic Engine Controls Wiring Diagrams - 2.5L (7 Of 9)

Courtesy of FORD MOTOR CO.

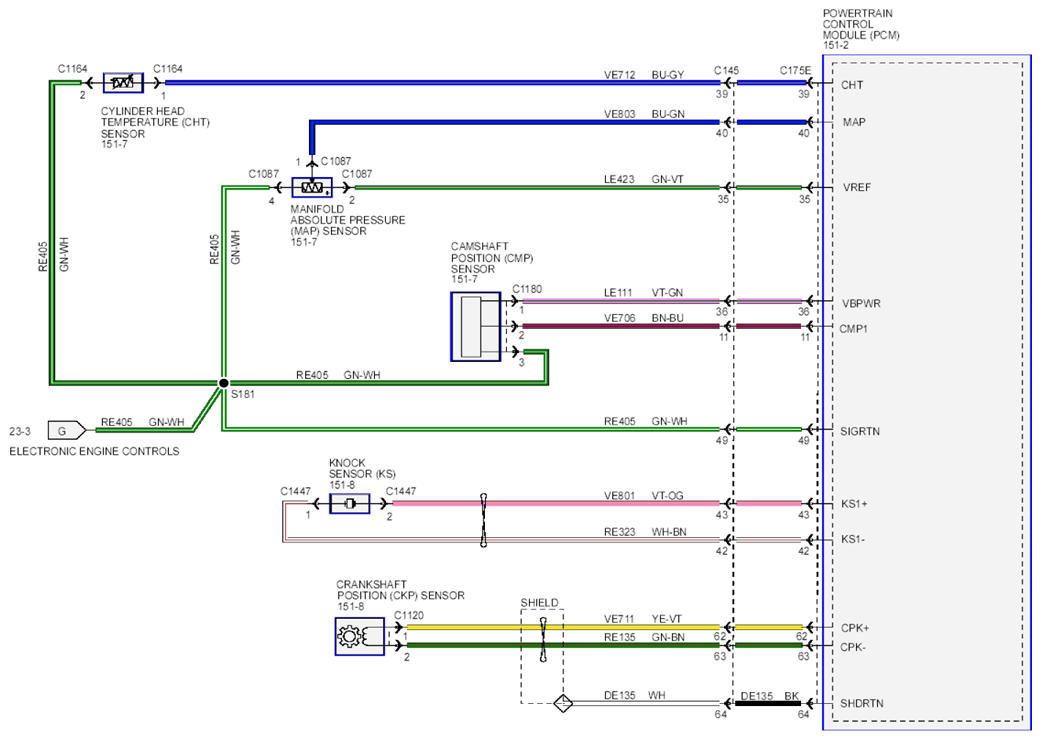

Fig 8: Electronic Engine Controls Wiring Diagrams - 2.5L (8 Of 9)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls Wiring Diagrams - 2.5L (9 Of 9)

Courtesy of FORD MOTOR CO.
