Cruise Control: 3.5L
WARNING:
This page is about a different variant/trim than selected.

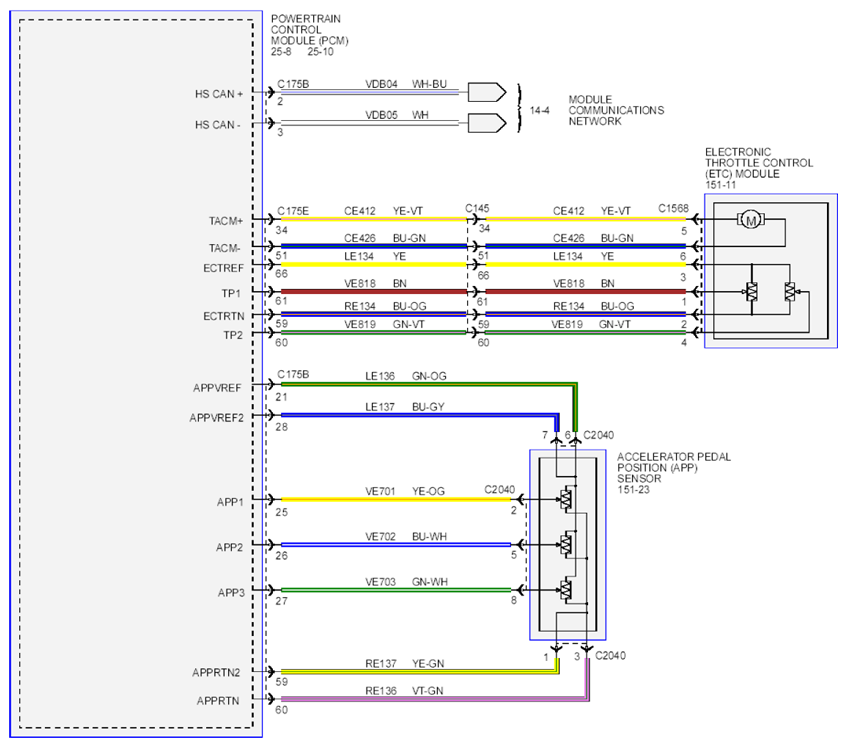

Fig 1: Cruise Control Wiring Diagram - 3.5L (1 Of 3)
Courtesy of FORD MOTOR CO.

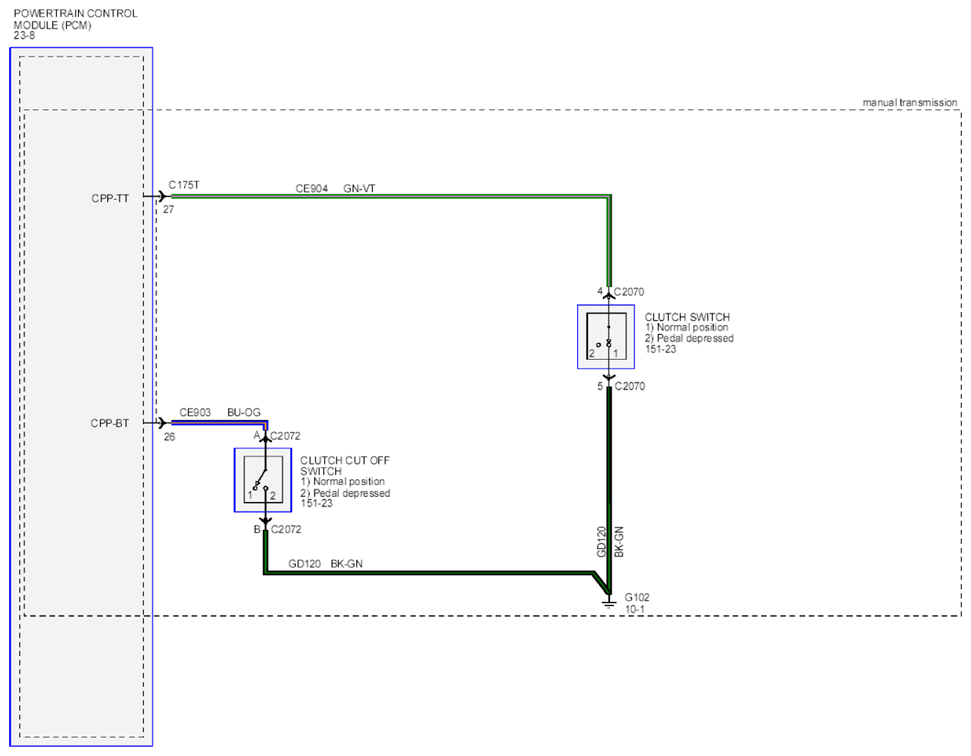

Fig 2: Cruise Control Wiring Diagram - 3.5L (2 Of 3)
Courtesy of FORD MOTOR CO.

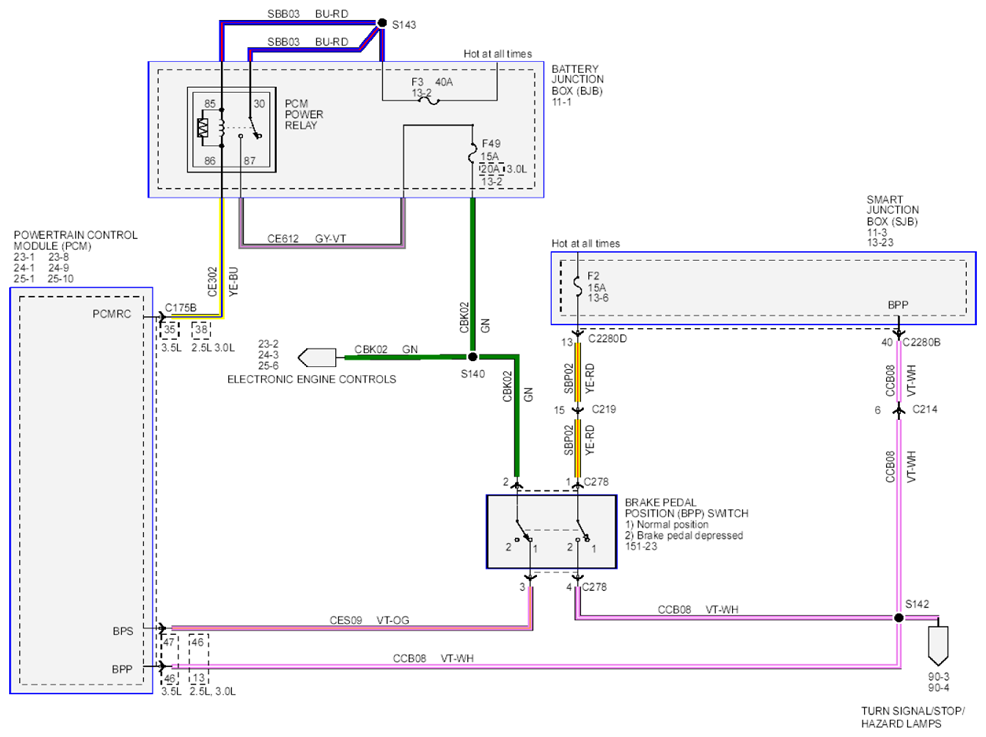

Fig 3: Cruise Control Wiring Diagram - 3.5L (3 Of 3)
Courtesy of FORD MOTOR CO.
