Cluster and Panel Illumination: MKZ

WARNING: This page is about a different variant/trim than selected.

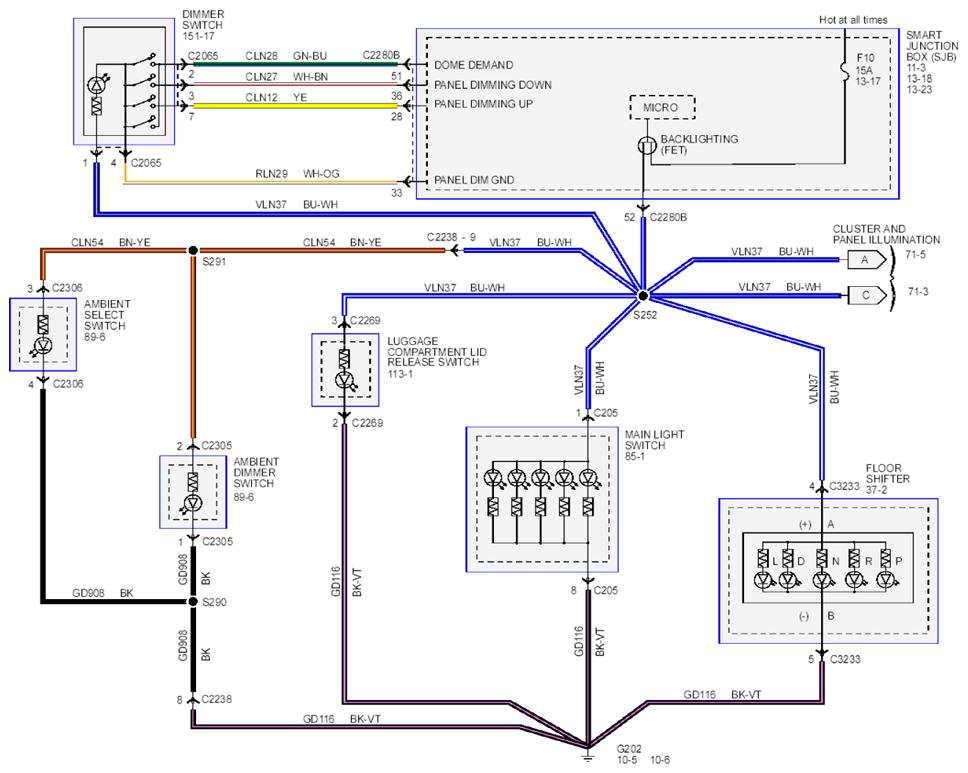

Fig 1: Cluster And Panel Illumination Wiring Diagram - MKZ (1 Of 2)
G07922715Courtesy of FORD MOTOR CO.

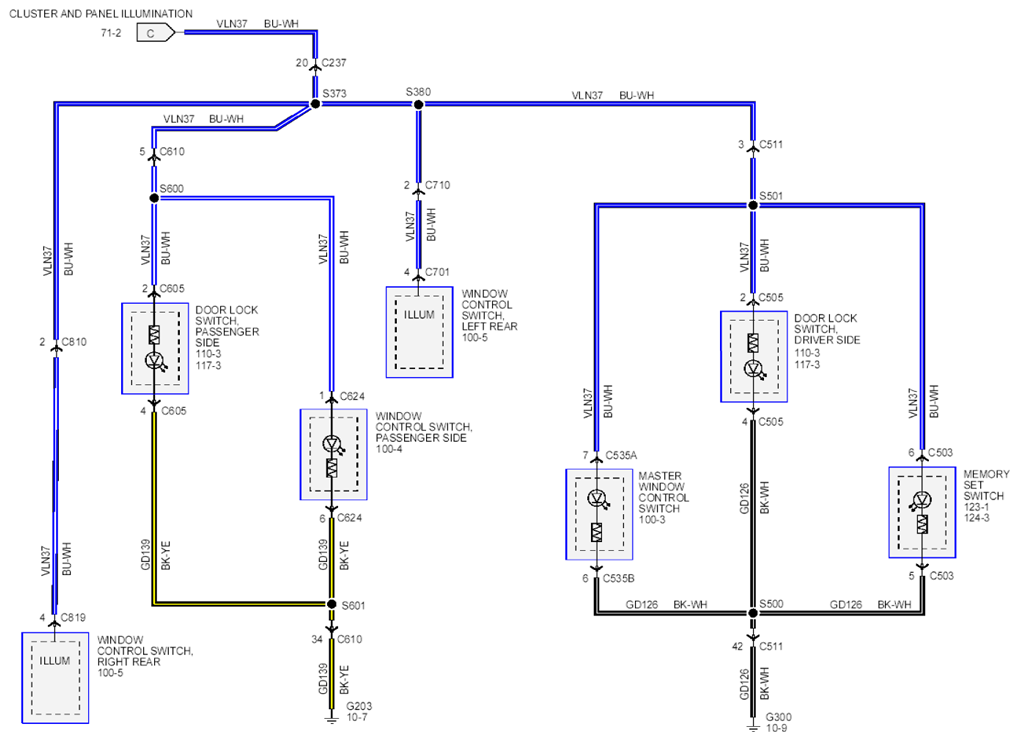

Fig 2: Cluster And Panel Illumination Wiring Diagram - MKZ (2 Of 2)
G07922716Courtesy of FORD MOTOR CO.
