Cluster and Panel Illumination: Fusion

WARNING: This page is about a different variant/trim than selected.

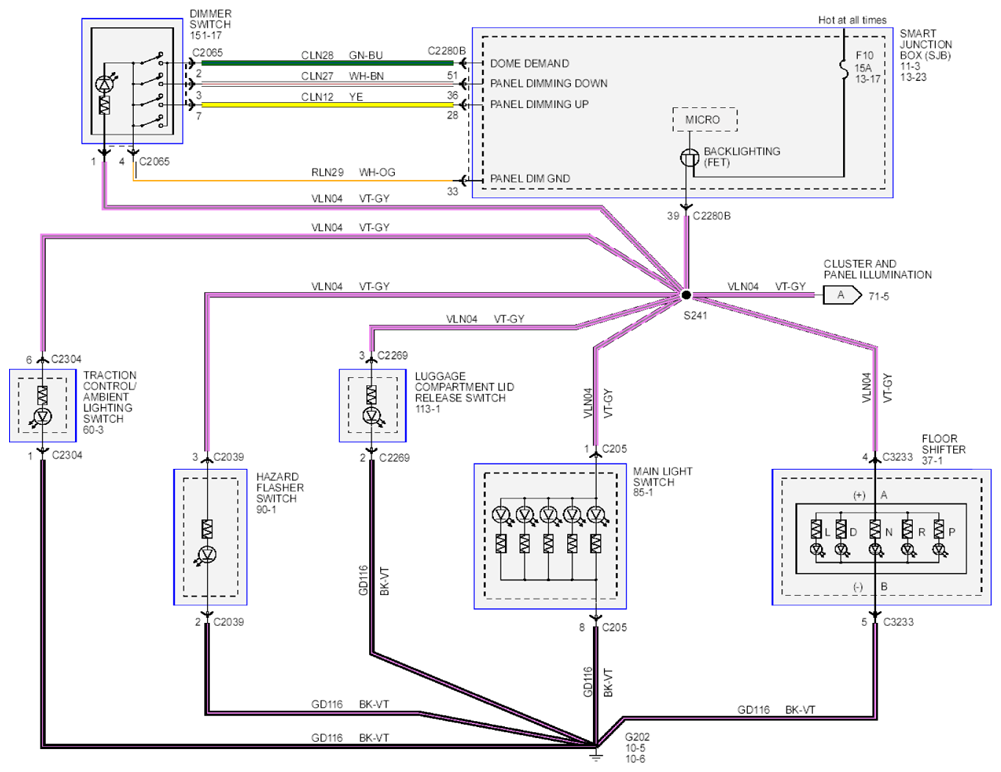

Fig 1: Cluster And Panel Illumination Wiring Diagram - Fusion
G07922714Courtesy of FORD MOTOR CO.

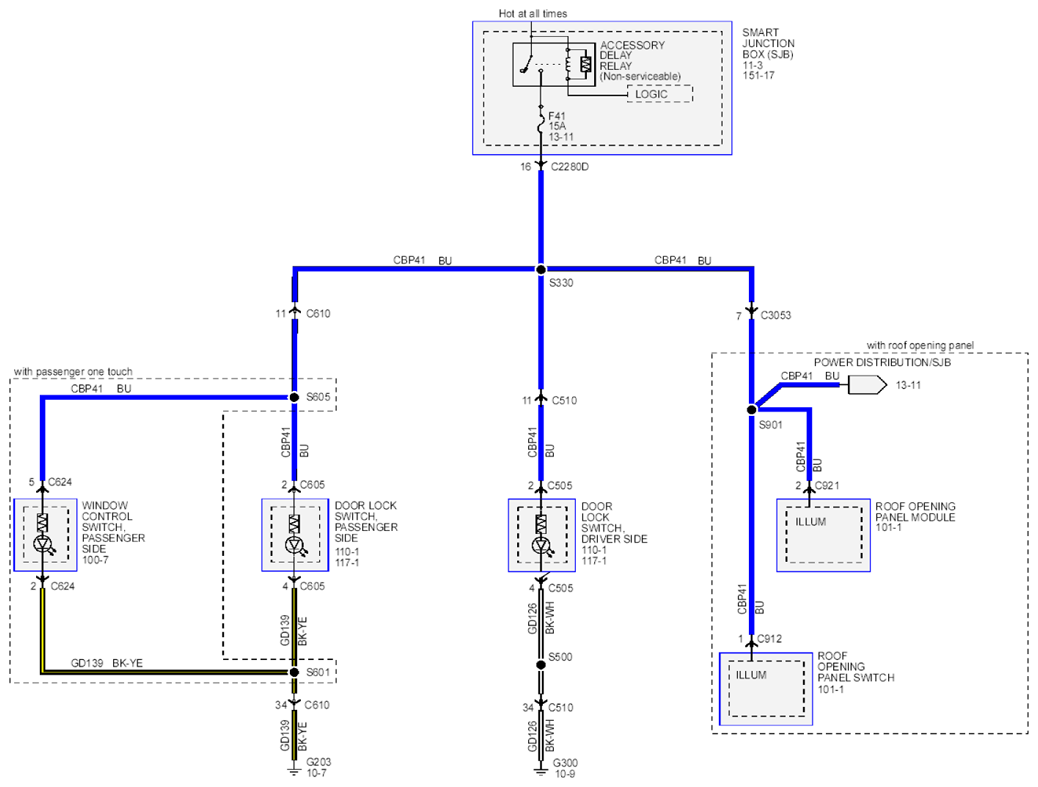

Fig 1: Cluster And Panel Illumination Wiring Diagram - Fusion (1 Of 3)
G07922717Courtesy of FORD MOTOR CO.

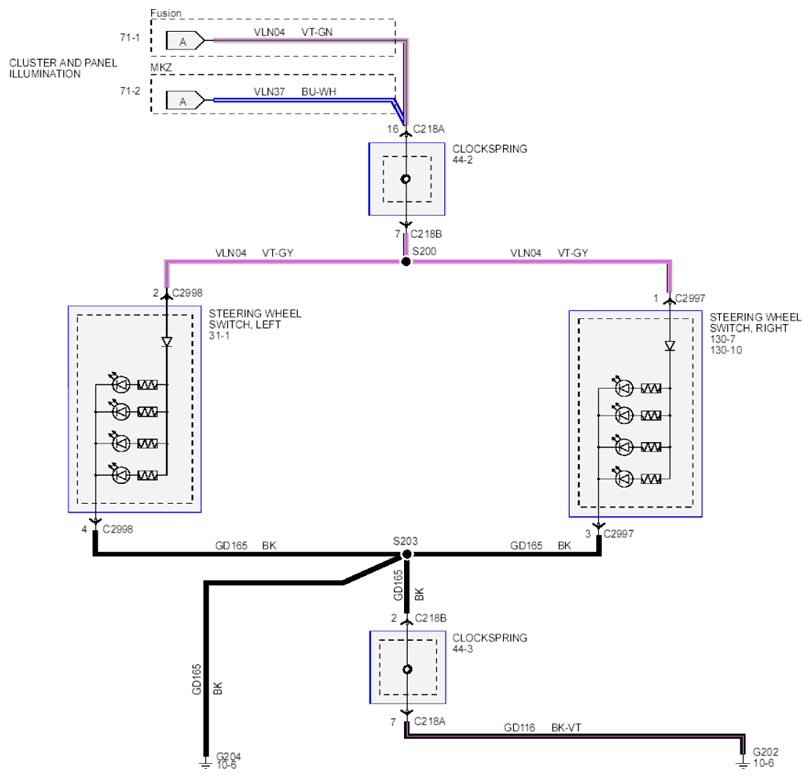

Fig 2: Cluster And Panel Illumination Wiring Diagram - Fusion (2 Of 3)
G07922718Courtesy of FORD MOTOR CO.

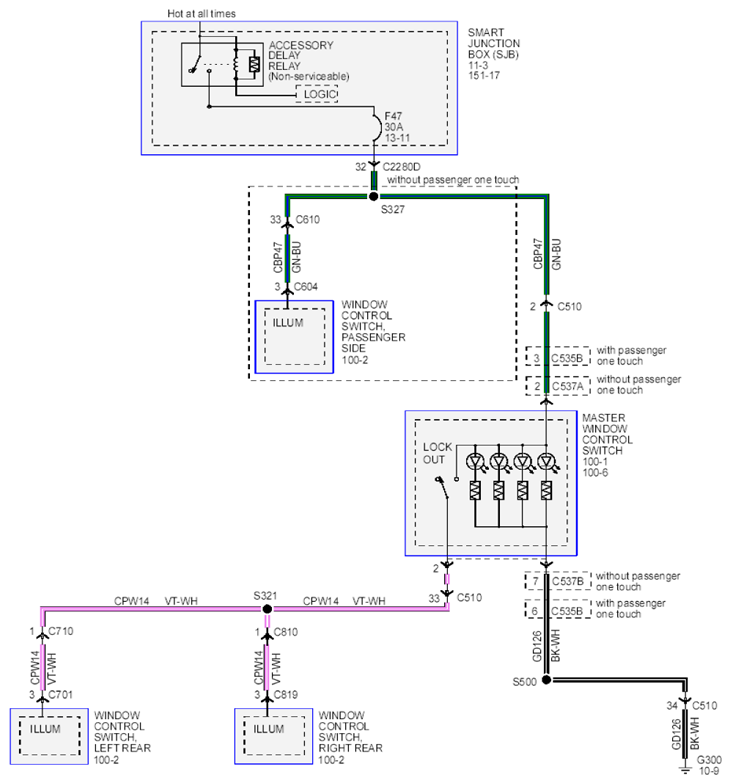

Fig 1: Cluster And Panel Illumination Wiring Diagram - Fusion (3 Of 3)
G07922719Courtesy of FORD MOTOR CO.
