Heated Seats

WARNING: This page is about a different variant/trim than selected.

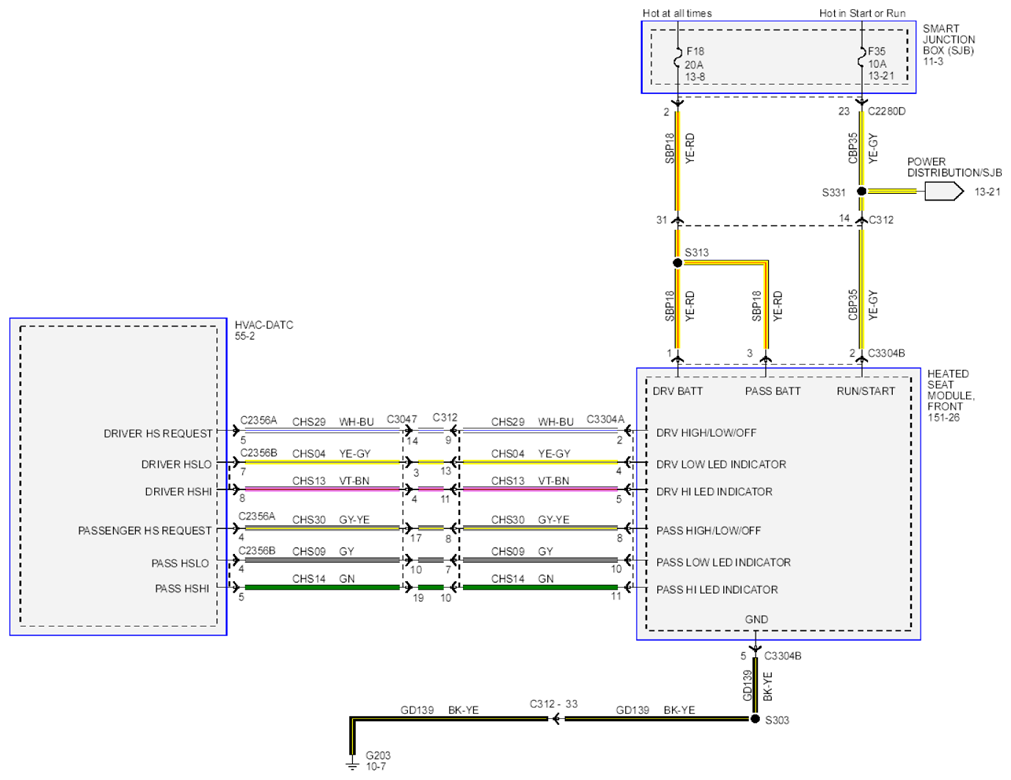

Fig 1: Climate Controlled Seats Wiring Diagram - Heated Seats (1 Of 3)
G07922768Courtesy of FORD MOTOR CO.

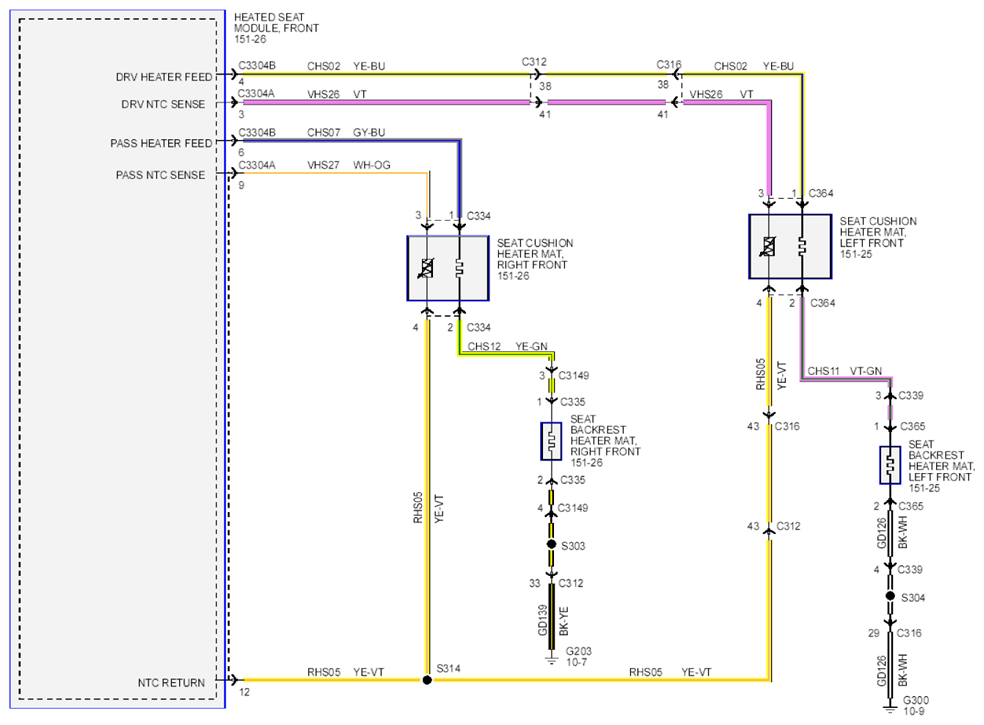

Fig 2: Climate Controlled Seats Wiring Diagram - Heated Seats (2 Of 3)
G07922769Courtesy of FORD MOTOR CO.

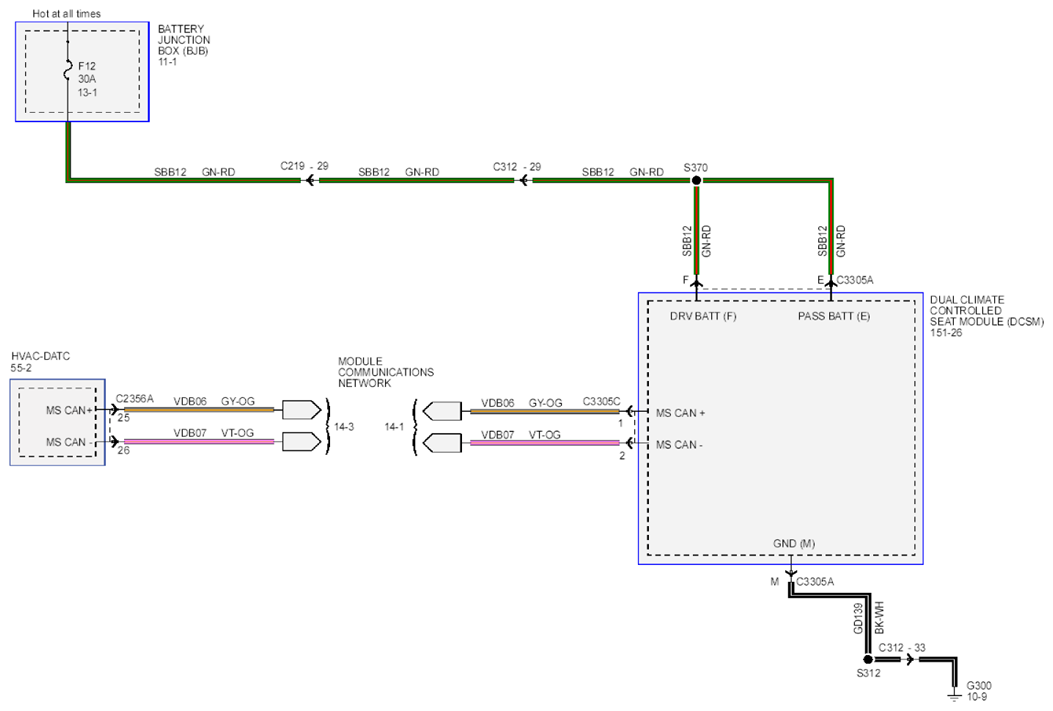

Fig 3: Climate Controlled Seats Wiring Diagram - Heated Seats (3 Of 3)
G07922770Courtesy of FORD MOTOR CO.
