Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Charging System
>>
3.5L
Charging System: 3.5L
WARNING:
This page is about a different variant/trim than selected.

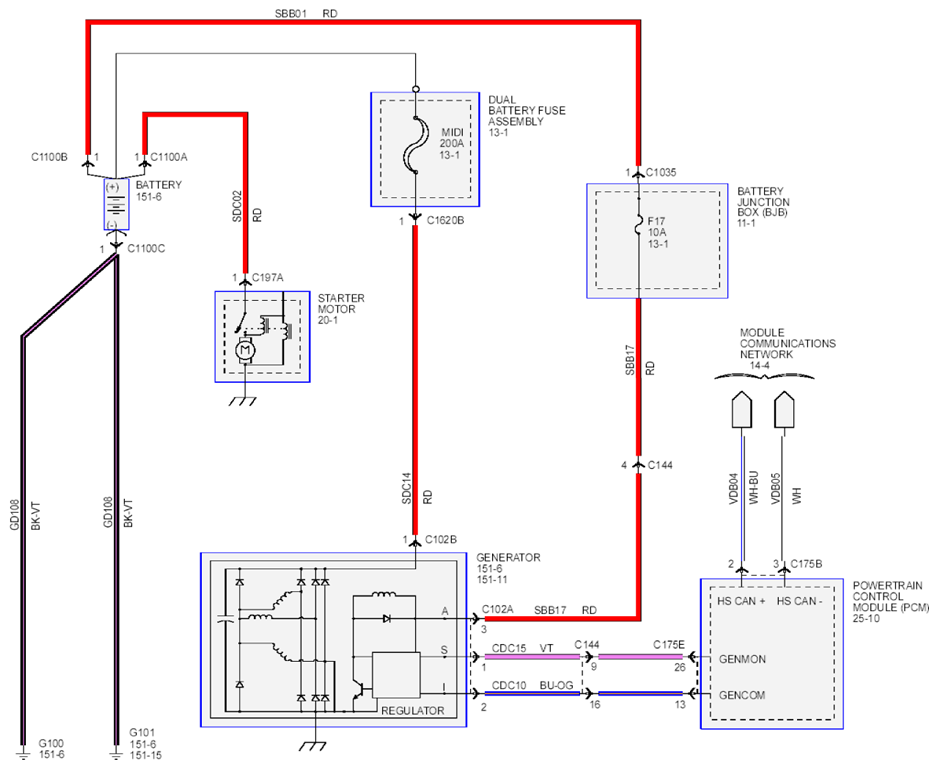

Fig 1: Charging System Wiring Diagram - 3.5L
Courtesy of FORD MOTOR CO.
