Automatic Climate Control System

WARNING: This page is about a different variant/trim than selected.

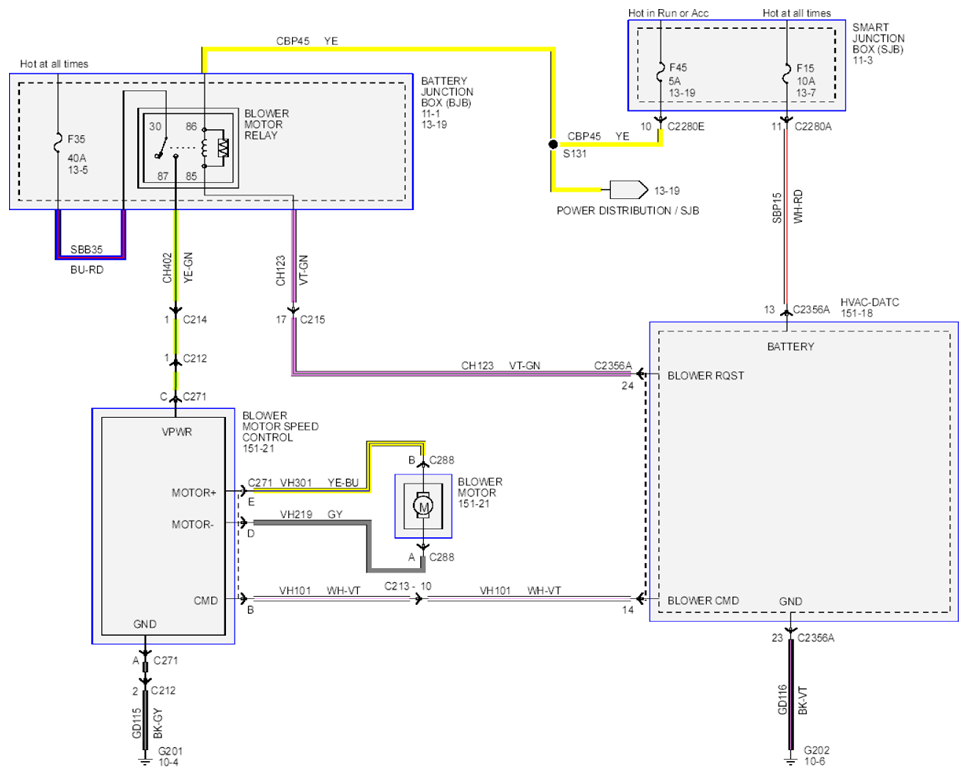

Fig 1: Automatic Climate Control System Wiring Diagram (1 Of 4)

Courtesy of FORD MOTOR CO.

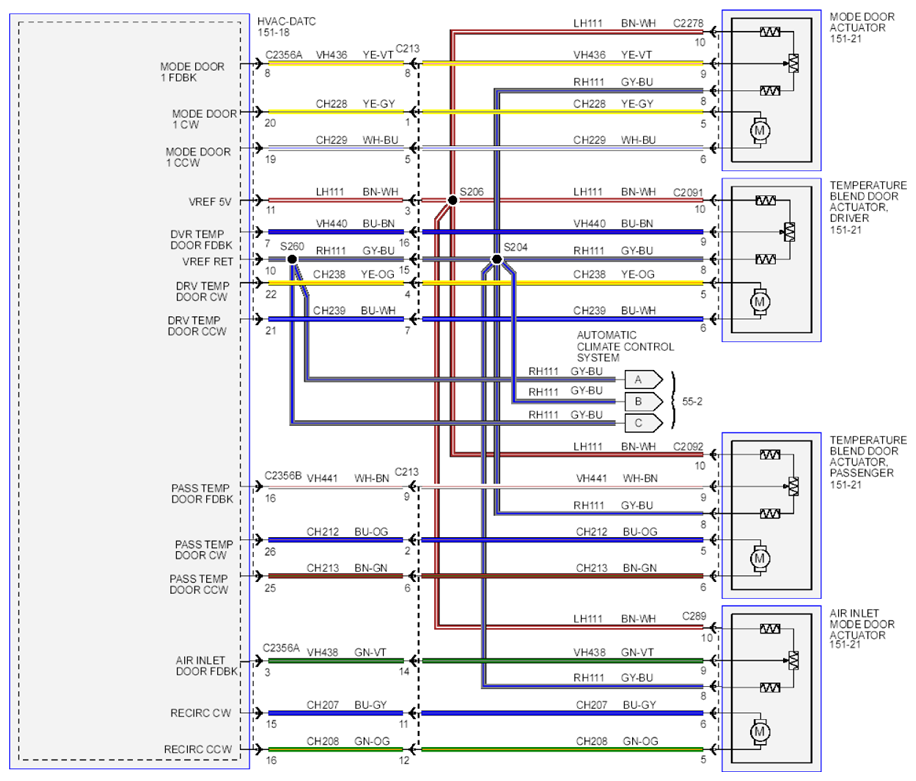

Fig 2: Automatic Climate Control System Wiring Diagram (2 Of 4)

Courtesy of FORD MOTOR CO.

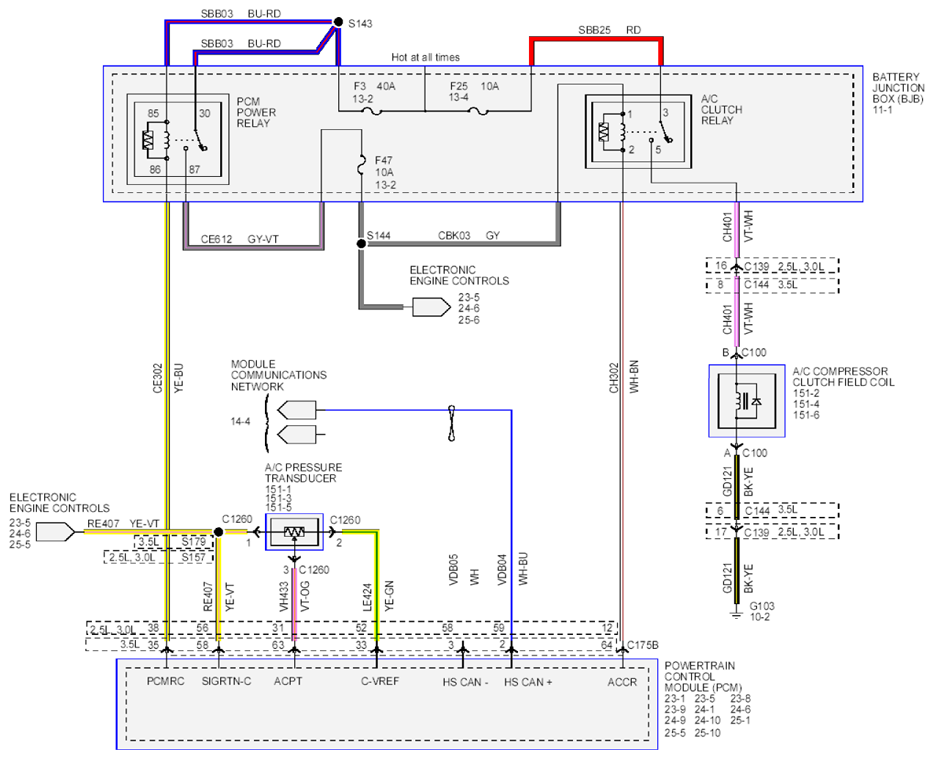

Fig 3: Automatic Climate Control System Wiring Diagram (3 Of 4)

Courtesy of FORD MOTOR CO.

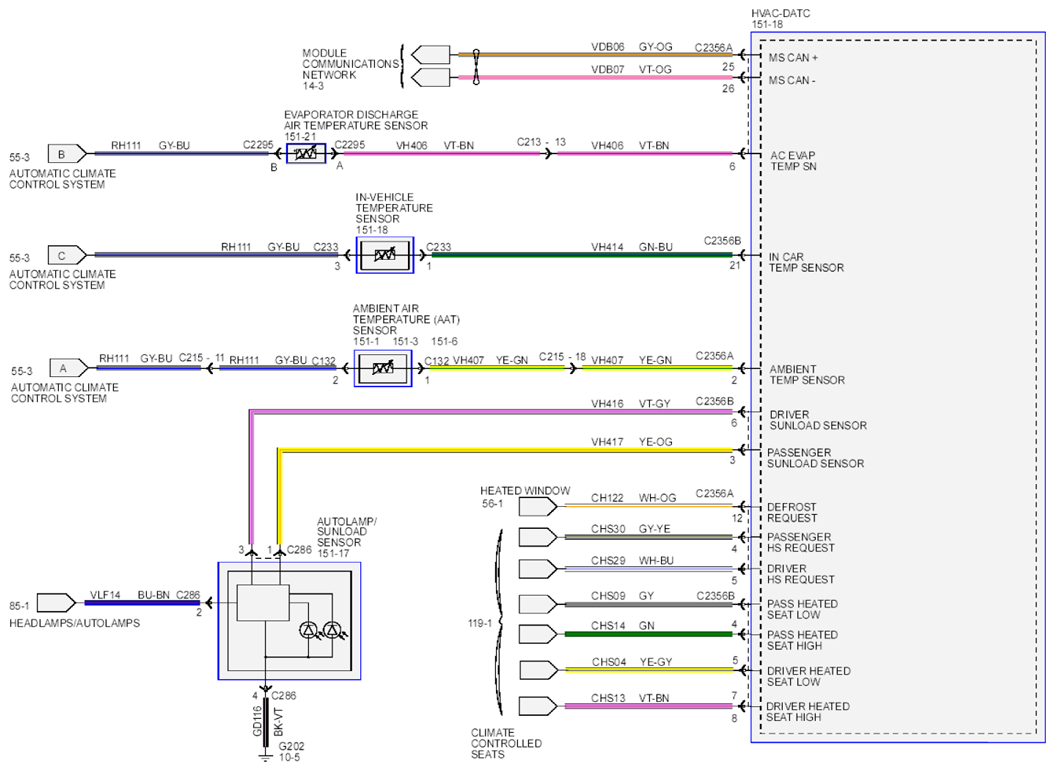

Fig 4: Automatic Climate Control System Wiring Diagram (4 Of 4)

Courtesy of FORD MOTOR CO.
