Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Audio System_Navigation
>>
THX® Audio
THX® Audio
WARNING:
This page is about a different variant/trim than selected.

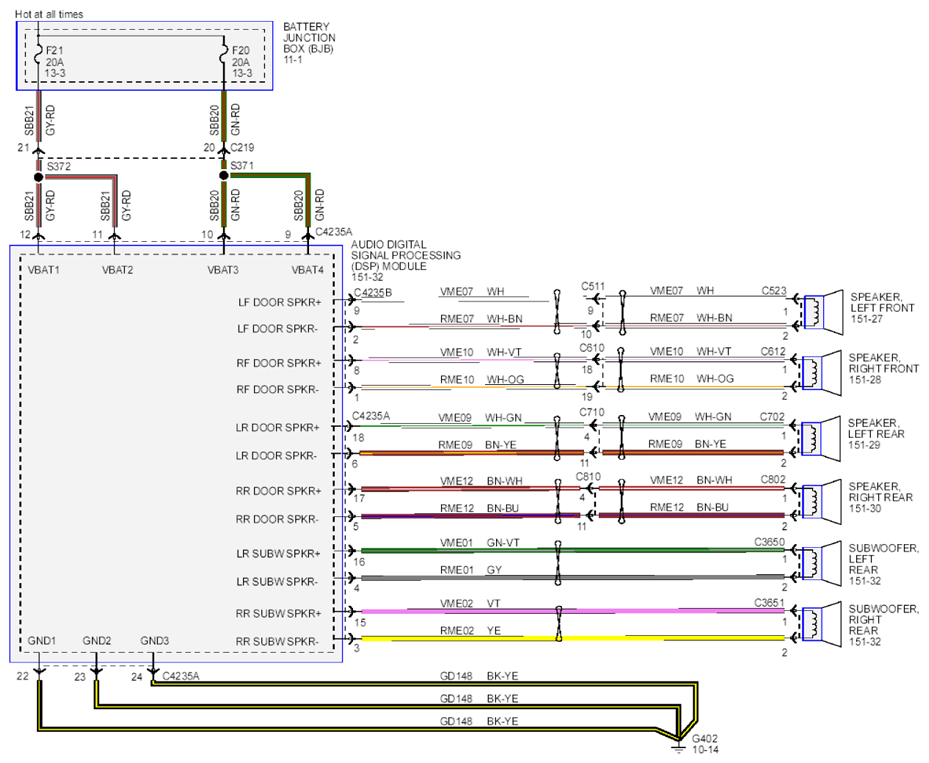

Fig 1: Audio System & Navigation Wiring Diagram - THX® Audio (1 Of 3)
Courtesy of FORD MOTOR CO.

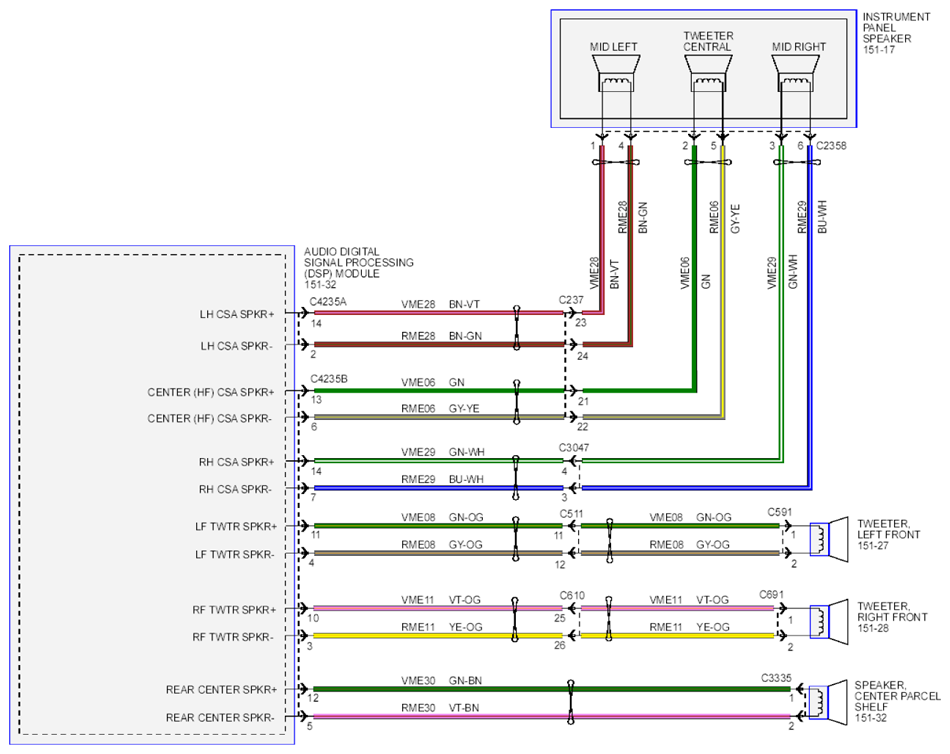

Fig 2: Audio System & Navigation Wiring Diagram - THX® Audio (2 Of 3)
Courtesy of FORD MOTOR CO.

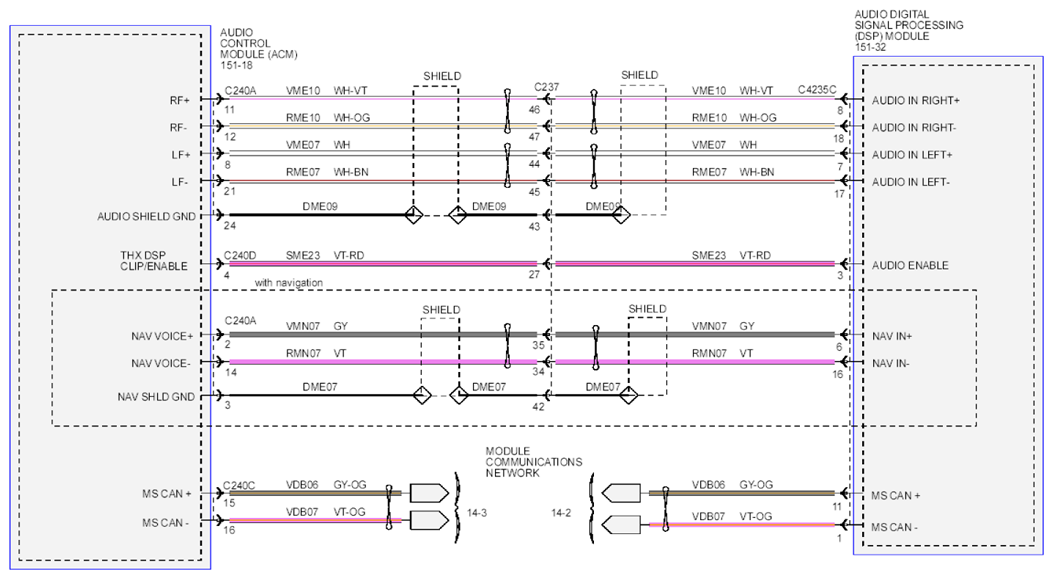

Fig 3: Audio System & Navigation Wiring Diagram - THX® Audio (3 Of 3)
Courtesy of FORD MOTOR CO.
