THX® Audio With Navigation

WARNING: This page is about a different variant/trim than selected.

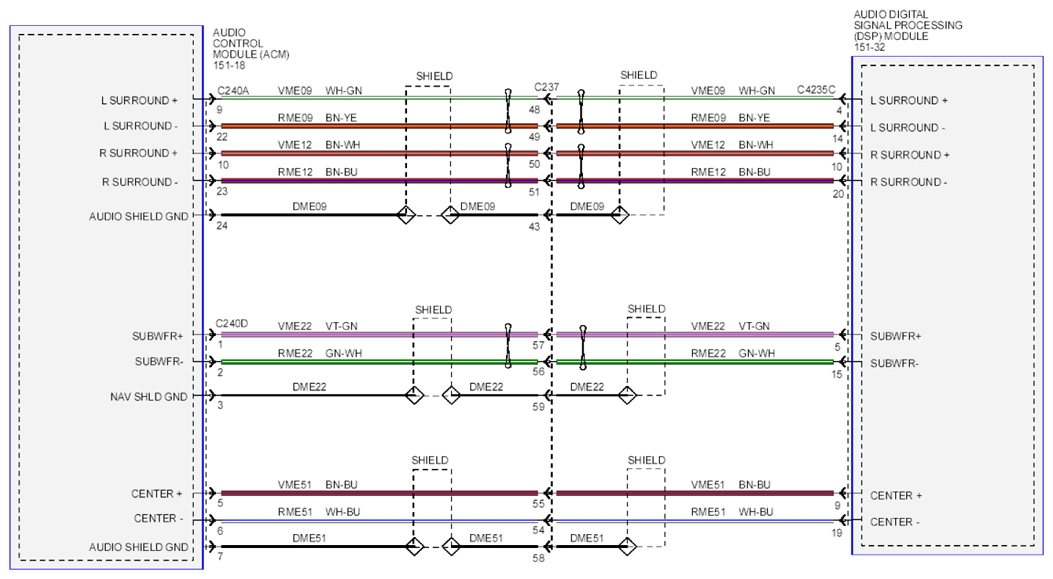

Fig 1: Audio System & Navigation Wiring Diagram - THX® Audio With Navigation
G07922800Courtesy of FORD MOTOR CO.
