Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Audio System_Navigation
>>
Sync
Audio System_Navigation: Sync
WARNING:
This page is about a different variant/trim than selected.

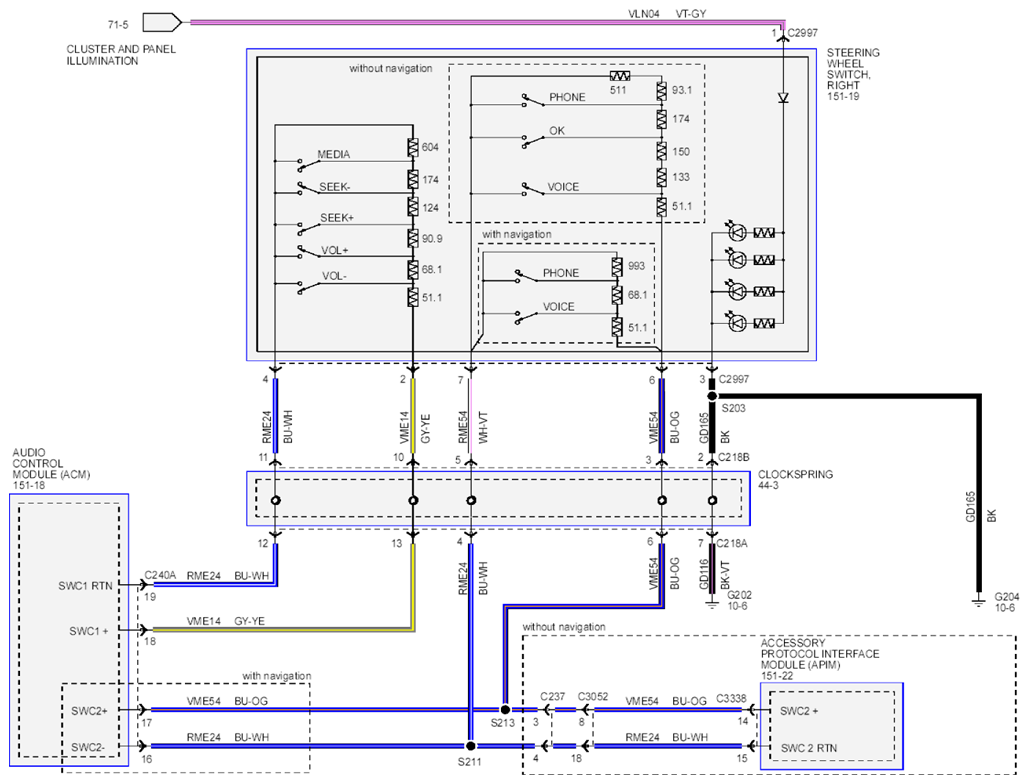

Fig 1: Audio System & Navigation Wiring Diagram - SYNC (1 Of 3)
Courtesy of FORD MOTOR CO.

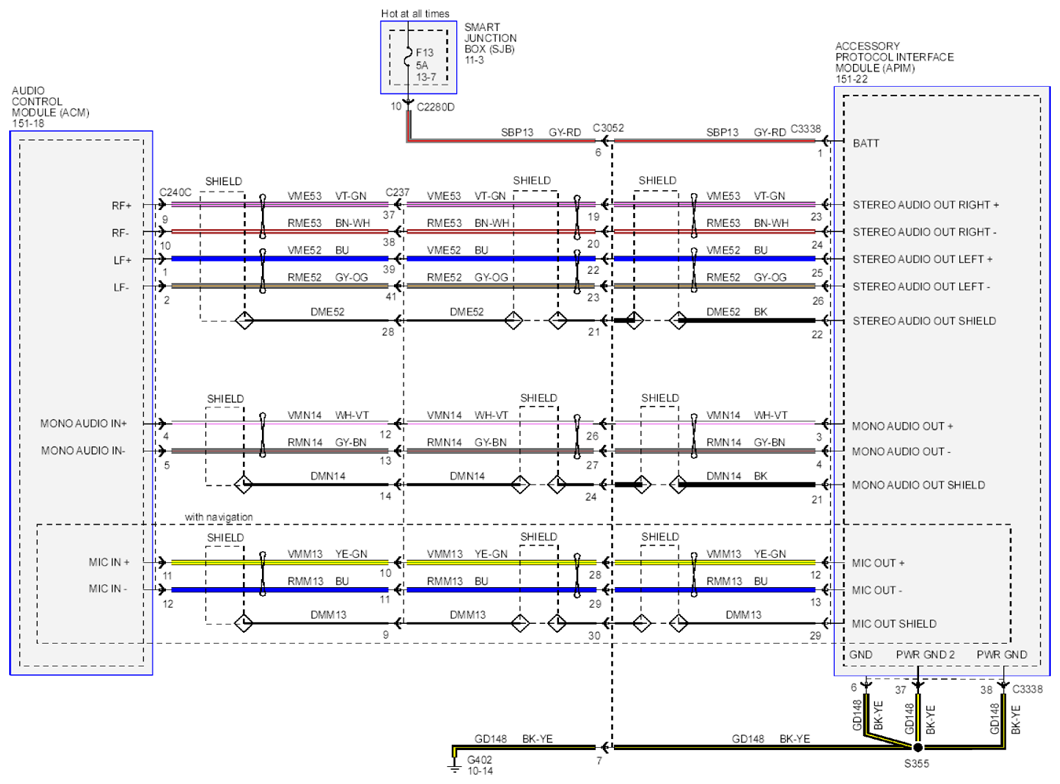

Fig 2: Audio System & Navigation Wiring Diagram - SYNC (2 Of 3)
Courtesy of FORD MOTOR CO.

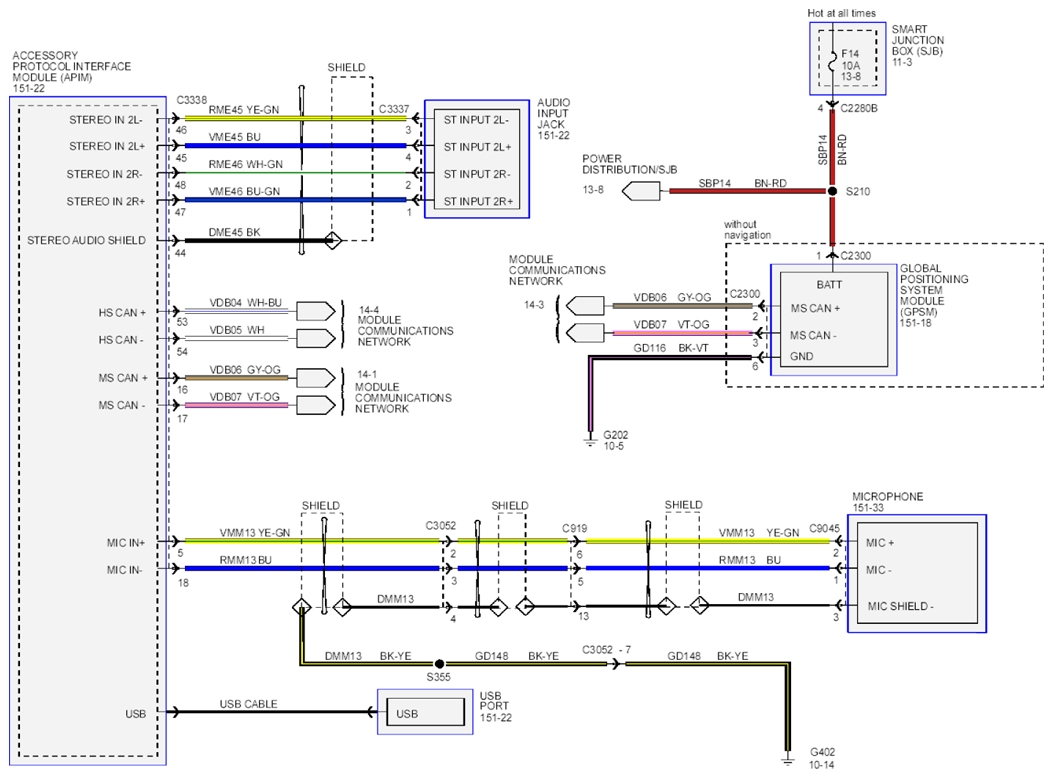

Fig 3: Audio System & Navigation Wiring Diagram - SYNC (3 Of 3)
Courtesy of FORD MOTOR CO.
