Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Audio System_Navigation
>>
Premium - MKZ
Premium - MKZ
WARNING:
This page is about a different variant/trim than selected.

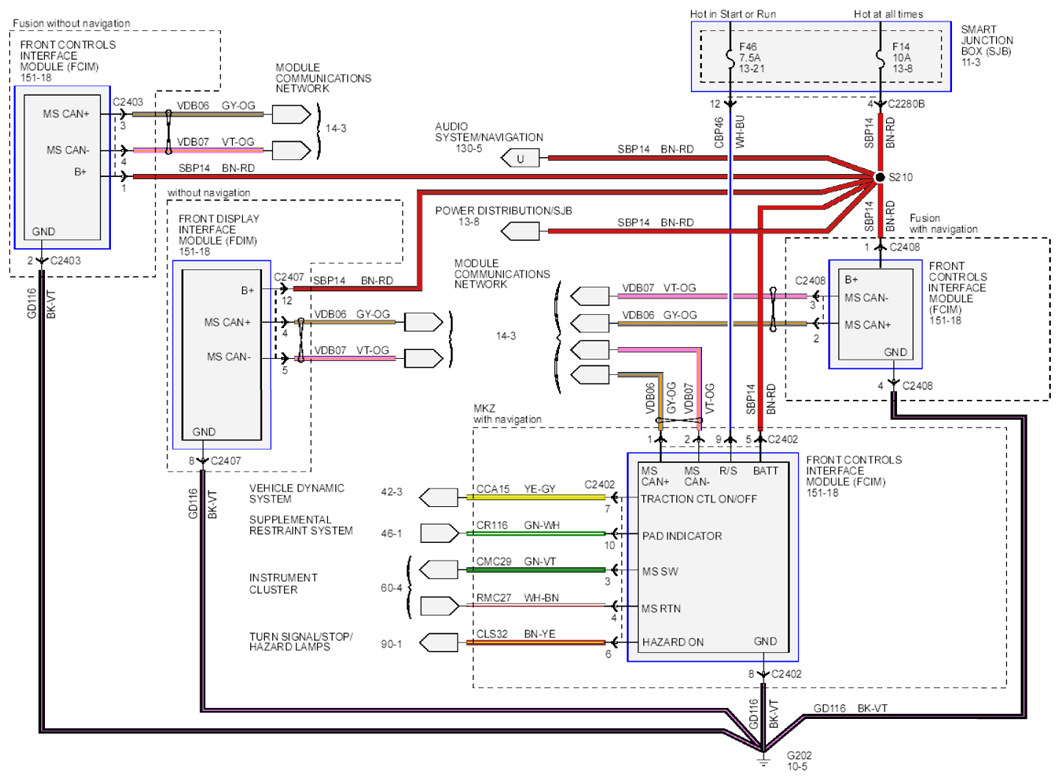

Fig 1: Audio System & Navigation Wiring Diagram - Premium, MKZ (1 Of 2)
Courtesy of FORD MOTOR CO.

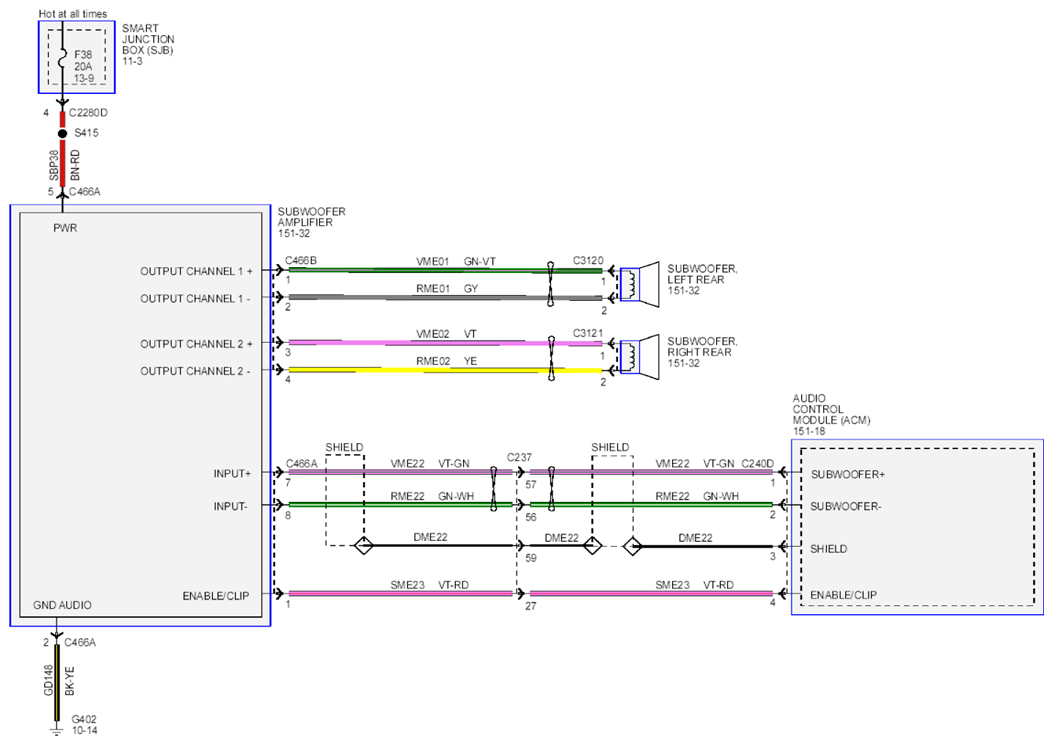

Fig 2: Audio System & Navigation Wiring Diagram - Premium, MKZ (2 Of 2)
Courtesy of FORD MOTOR CO.
