Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Audio System_Navigation
>>
Notes
Audio System_Navigation: Notes
WARNING:
This page is about a different variant/trim than selected.

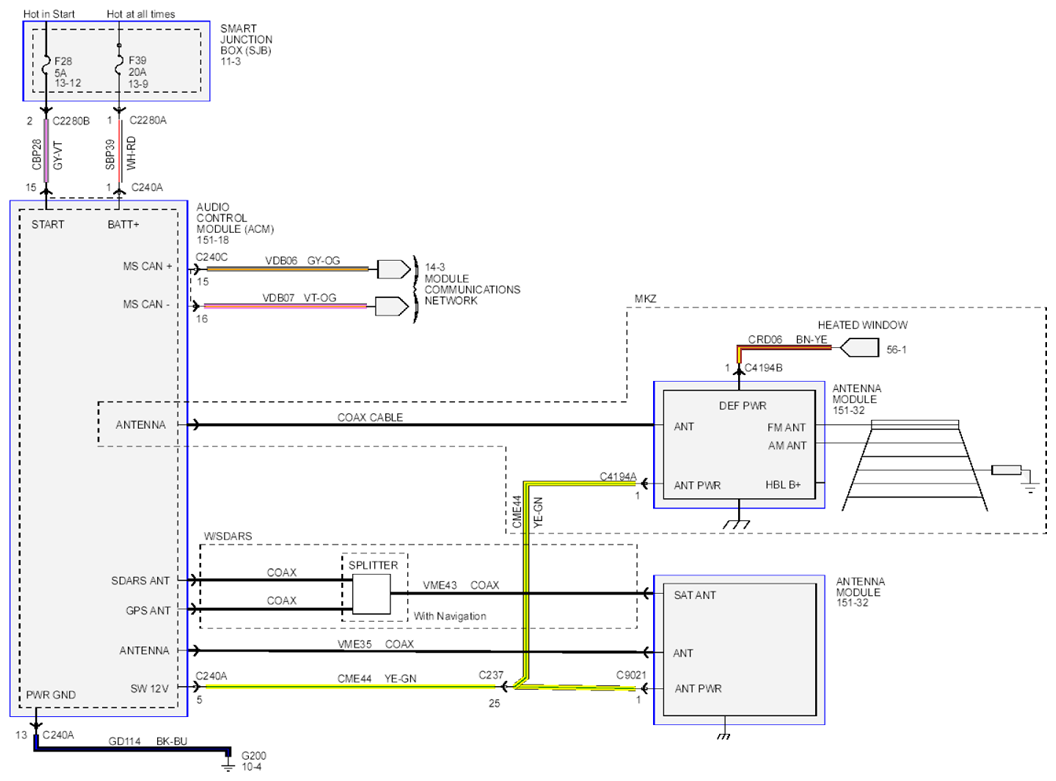

Fig 1: Audio System & Navigation Wiring Diagram
Courtesy of FORD MOTOR CO.
