Audio System_Navigation: Navigation

WARNING: This page is about a different variant/trim than selected.

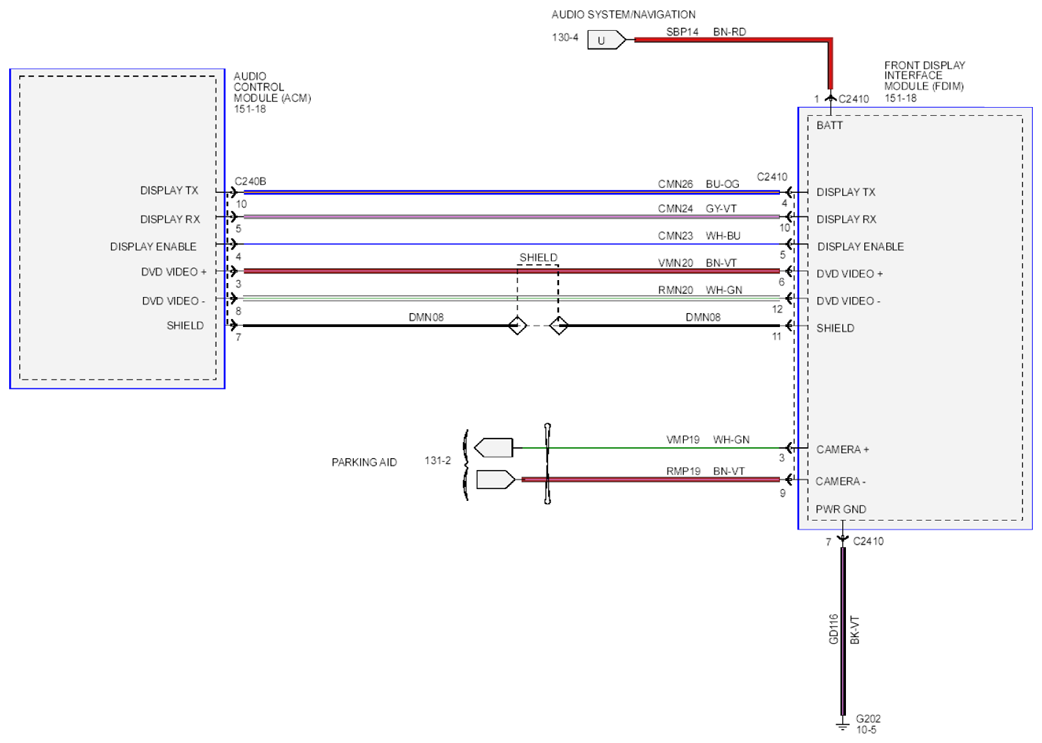

Fig 1: Audio System & Navigation Wiring Diagram - Navigation (1 Of 3)
G07922791Courtesy of FORD MOTOR CO.

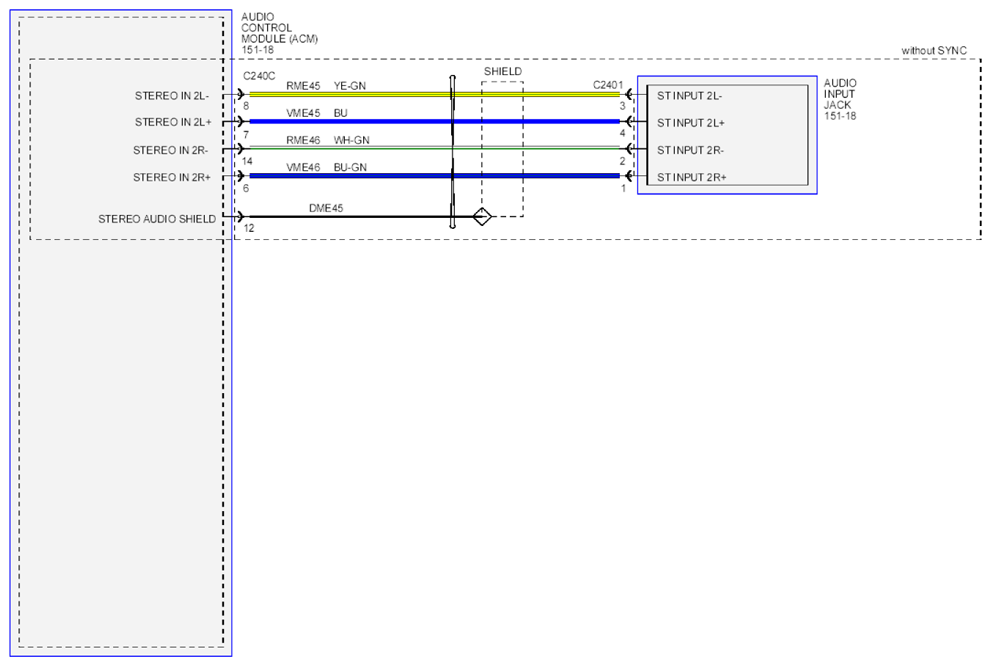

Fig 2: Audio System & Navigation Wiring Diagram - Navigation (2 Of 3)
G07922792Courtesy of FORD MOTOR CO.

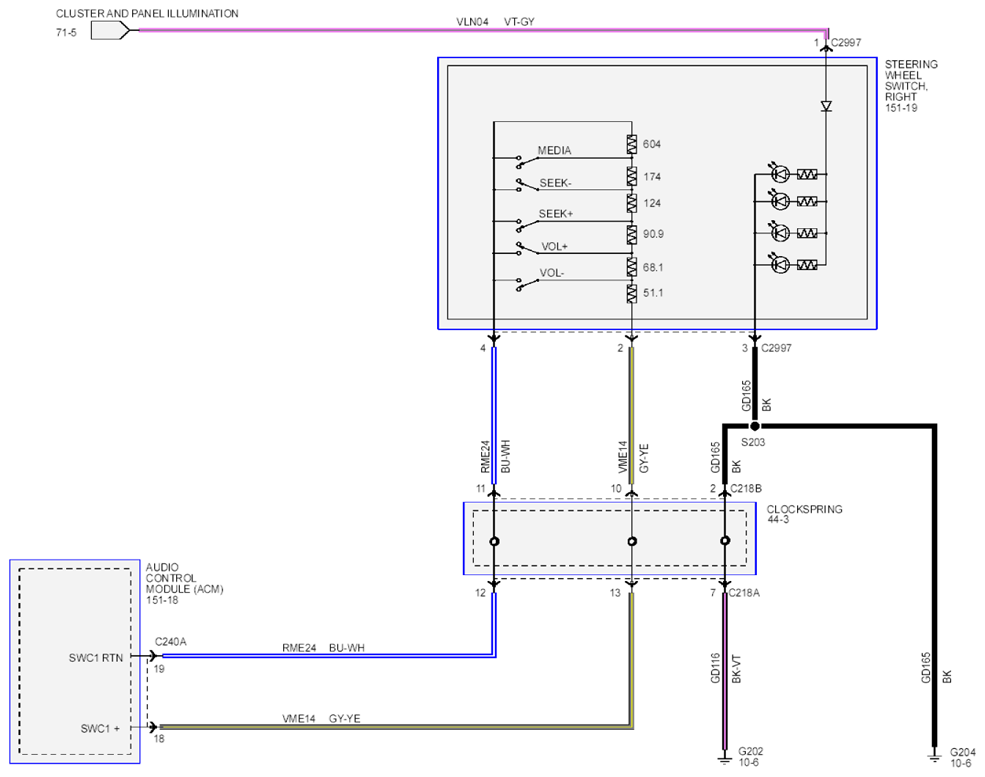

Fig 3: Audio System & Navigation Wiring Diagram - Navigation (3 Of 3)
G07922793Courtesy of FORD MOTOR CO.
