Transaxle Cooling
WARNING: This page is about a different variant/trim than selected.

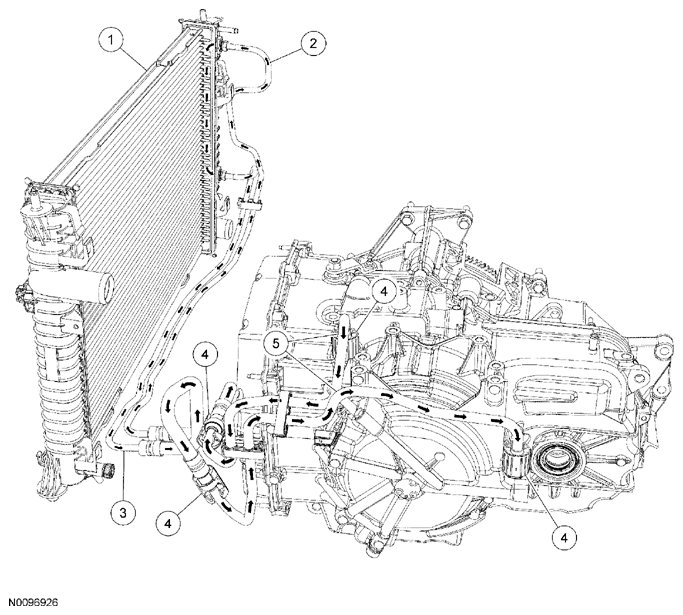

| Item | Part Number | Description |
|---|---|---|
| 1 | 8005 | Radiator |
| 2 | 7R081 | Transmission fluid cooler supply tube assembly (supplies transmission fluid to the transmission fluid cooler from the transaxle) |
| 3 | 7R081 | Transmission fluid cooler return tube assembly (transmission fluid return tube from the transmission fluid cooler to the transaxle) |
| 4 | 7J081 | Transmission fluid cooler tube secondary latches |
| 5 | 7H420 | Transaxle mounted transmission fluid cooler tubes |
