Fuel Vapor Tube Assembly - All Wheel Drive (AWD): Notes
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS
| Fuel Storage Tanker 164-R3202 or equivalent |
|
| Powertrain Lift 300-OTC1585AE or equivalent |

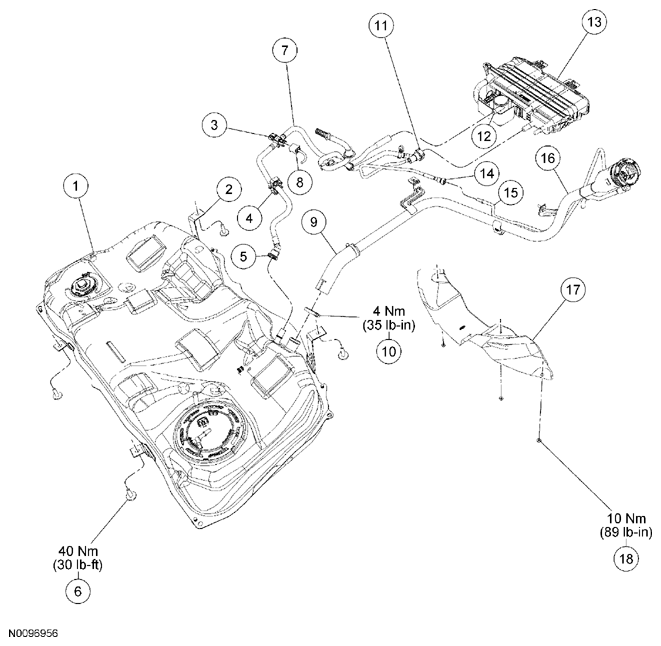

| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Fuel tank |
| 2 | 9092 | Fuel tank strap (2 required) |
| 3 | 9C052 | Fuel Tank Pressure (FTP) sensor (part of 9A228) |
| 4 | - | Retainer clip (part of 9A228) (3 required) |
| 5 | - | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9A228) |
| 6 | W505444 | Fuel tank strap bolt (4 required) |
| 7 | 9A228 | Fuel vapor tube assembly |
| 8 | 14A464 | FTP sensor electrical connector |
| 9 | - | Fuel tank filler pipe hose (part of 9034) |
| 10 | W525937 | Fuel tank filler pipe hose clamp |
| 11 | - | Fuel vapor tube assembly-to-Evaporative Emission (EVAP) canister quick connect coupling (part of 9A228) |
| 12 | 9G676 | Fuel vapor separator and solenoid assembly (part of 9E857) |
| 13 | 9E857 | EVAP canister assembly |
| 14 | - | Fuel vapor tube assembly-to-recirculation tube quick connect coupling (part of 9A228) |
| 15 | - | Fuel tank filler pipe recirculation tube (part of 9034) |
| 16 | 9034 | Fuel tank filler pipe |
| 17 | 5411268 | Fuel tank filler pipe heat shield |
| 18 | W707142 | Fuel tank filler pipe heat shield nut (3 required) |
