Evaporative Emission Canister: Notes
WARNING: This page is about a different variant/trim than selected.

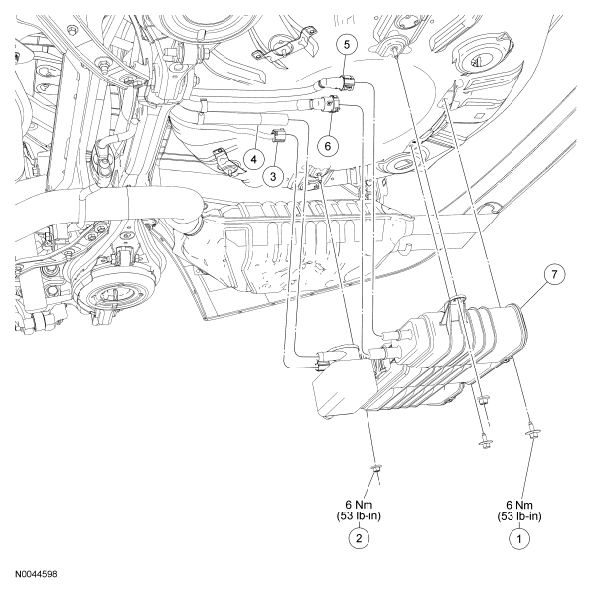

| Item | Part Number | Description |
|---|---|---|
| 1 | W708029 | Evaporative Emission (EVAP) canister bolt (2 required) |
| 2 | W707142 | EVAP canister nut (2 required) |
| 3 | 14A464 | EVAP canister vent solenoid electrical connector (part of 14A005) |
| 4 | - | Fresh air hose (part of 9034) |
| 5 | - | Vapor tube-to-EVAP canister quick connect coupling (part of 9J279) |
| 6 | - | Fuel vapor tube assembly-to-EVAP canister quick connect coupling (part of 9A228) |
| 7 | 9E857 | EVAP canister assembly |
