Selector Lever Knob: Removal

Vehicles equipped with a 2.5L or 3.0L (4V) engine

1. Remove the selector lever trim ring.
   Fig 1: Location of Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
2. Remove the center console trim panel.
   Fig 2: Location of Center Console Trim Panel

   Courtesy of FORD MOTOR CO.
3. Disconnect the Transmission Control Switch (TCS) or select switch electrical connector.
   Fig 3: Location of Select Switch Electrical Connector

   Courtesy of FORD MOTOR CO.

   All vehicles

NOTE: TCS shown in illustration, select switch similar.
Fig 4: Sliding Selector Lever Knob Shroud Downwards
Courtesy of FORD MOTOR CO.
4. Slide the selector lever knob shroud downward to gain access to the 2 selector lever knob screws.
NOTE: It is necessary to route the Transmission Control Switch (TCS) harness or select switch harness out of the selector lever shroud when removing the selector lever knob.

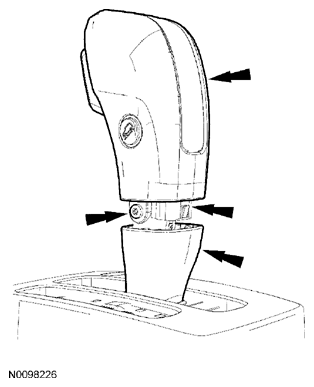

Fig 5: Location of Selector Lever Knob, Screws And Shroud
Courtesy of FORD MOTOR CO.
5. Remove the 2 screws from the selector lever knob. Remove the selector lever knob and selector lever knob shroud.
