Selector Lever Bezel - MKZ: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the LH and RH console finish moldings.

Fig 1: Location of LH And RH Console Finish Moldings
Courtesy of FORD MOTOR CO.
Slide the selector lever knob trim ring down to expose the 2 selector lever knob screws.

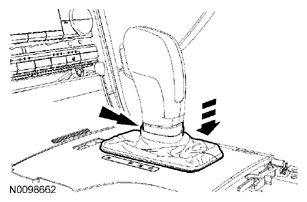

Fig 2: Sliding Selector Lever Knob Trim Ring Downwards
Courtesy of FORD MOTOR CO.
Remove the 2 selector lever knob screws and remove the selector lever knob.

Fig 3: Location of Selector Lever Knob And Screws
Courtesy of FORD MOTOR CO.
Lift the arm rest, apply the emergency brake, pull directly up on the selector lever bezel and remove it from the center console.

Fig 4: Location of Arm Rest, Selector Lever Bezel And Center Console
Courtesy of FORD MOTOR CO.
Disconnect the selector lever bezel electrical connector and remove the selector lever bezel.

Fig 5: Location of Selector Lever Bezel Electrical Connector
Courtesy of FORD MOTOR CO.
Compress the retention tabs on the selector lever boot and remove the boot from the bottom of the selector lever bezel.

Fig 6: Compressing Retention Tabs On Selector Lever Boot
Courtesy of FORD MOTOR CO.
Compress the retention tabs on the selector lever trim ring and remove the trim ring through from the top of the selector lever bezel.

Fig 7: Compressing Retention Tabs On Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
