Selector Lever Bezel - MKZ: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the selector lever trim ring in the selector lever bezel.
    Fig 1: Location of Selector Lever Trim Ring
    G06275725Courtesy of FORD MOTOR CO.
    2. NOTE: When installing the selector lever boot, be sure it is in the correct position or the selector lever boot can not be installed on the selector lever knob. If needed, align the selector lever knob to the selector lever boot when installing the boot.
    Fig 2: Installing Selector Lever Boot In Selector Lever Bezel
    G06275726Courtesy of FORD MOTOR CO.
  2. Install the selector lever boot in the selector lever bezel.
  3. Position the selector lever bezel in place and connect the electrical connector.
    Fig 3: Location of Selector Lever Bezel Electrical Connector
    G06275722Courtesy of FORD MOTOR CO.
  4. Position the selector lever bezel in place and install it onto the center console.
    Fig 4: Location of Arm Rest, Selector Lever Bezel And Center Console
    G06275721Courtesy of FORD MOTOR CO.
  5. Position the selector lever knob onto the selector lever and install the screws.

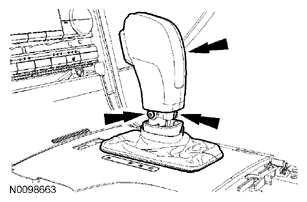

    Fig 5: Location of Selector Lever Knob And Screws
    G07786383Courtesy of FORD MOTOR CO.
  6. Slide the selector lever knob trim ring up and install it on the selector lever knob.

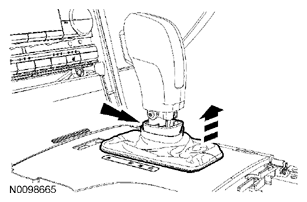

    Fig 6: Sliding Selector Lever Knob Trim Ring Upwards
    G07786393Courtesy of FORD MOTOR CO.
  7. Install the LH and RH console finish moldings.
    Fig 7: Location of LH And RH Console Finish Moldings
    G06275718Courtesy of FORD MOTOR CO.
