Selector Lever Bezel - Fusion: Installation

WARNING: This page is about a different variant/trim than selected.

Vehicles equipped with a 2.5L or 3.0L (4V) engine

    NOTE: Be sure that the override lever is inserted in the override lever guide or the shift interlock override button will not work correctly.
    NOTE: Selector lever removed for clarity.
  1. Install the selector lever bezel on the selector lever.
    • Position the override lever in the override lever guide.
    • Make sure that the 3 locking tabs are locked in place.
      Fig 1: Location of Locking Tabs
      G06275707Courtesy of FORD MOTOR CO.

    Vehicles equipped with a 3.5L engine

    2. NOTE: Selector lever removed for clarity.
    Fig 2: Location of Selector Lever Bezel Tabs
    G06275706Courtesy of FORD MOTOR CO.
  2. Install the selector lever bezel on the selector lever and be sure the 3 tabs are locked in place.

    All vehicles

  3. Connect the selector lever bezel electrical connector.
    Fig 3: Location of Selector Lever Bezel Electrical Connector
    G06275801Courtesy of FORD MOTOR CO.
    4. NOTE: It is necessary to route the Transmission Control Switch (TCS) harness or SelectShift™ switch harness out of the selector lever bezel when removing the selector lever knob.
    NOTE: TCS shown in illustration, SelectShift™ switch similar.
    Fig 4: Location of Selector Lever Knob, Screw And Bezel
    G07786367Courtesy of FORD MOTOR CO.
  4. Install the selector lever knob on the selector lever and install the screws.
  5. Slide the selector lever knob bezel up and install it on the selector lever knob.

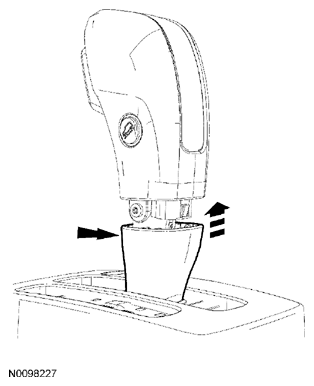

    Fig 5: Sliding Selector Lever Knob Bezel Upwards
    G07786374Courtesy of FORD MOTOR CO.

    Vehicles equipped with 2.5L or 3.0L (4V) engine

  6. Connect the TCS or SelectShift™ switch electrical connector.
    Fig 6: Location of Select Switch Electrical Connector
    G06275702Courtesy of FORD MOTOR CO.

    All vehicles

  7. Position the utility tray in place and connect the electrical connector.
    Fig 7: Location of Center Console Electrical Connector
    G06275701Courtesy of FORD MOTOR CO.
  8. Install the utility tray on the center console.

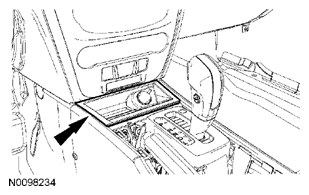

    Fig 8: Location of Center Console Utility Tray
    G07786363Courtesy of FORD MOTOR CO.
  9. Install the center console trim panel.
    Fig 9: Location of Center Console Trim Panel
    G06275754Courtesy of FORD MOTOR CO.
  10. Install the selector lever trim ring.
    Fig 10: Location of Selector Lever Trim Ring
    G06275753Courtesy of FORD MOTOR CO.
