Selector Lever - MKZ: Installation

WARNING: This page is about a different variant/trim than selected.

Install the selector lever cable in the selector lever and position the selector lever on the studs.

Fig 1: Location of Selector Lever Cable Tab
Courtesy of FORD MOTOR CO.
Install the 4 selector lever nuts.
- Tighten to 20 Nm (177 lb-in).

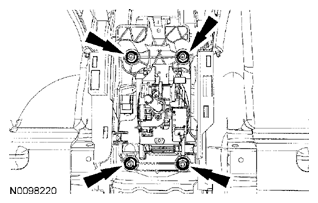

  Fig 2: Location of Selector Lever Nuts
  Courtesy of FORD MOTOR CO.
Connect the selector lever electrical connector.

Fig 3: Location of Selector Lever Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the selector lever cable end on the selector lever ball stud.

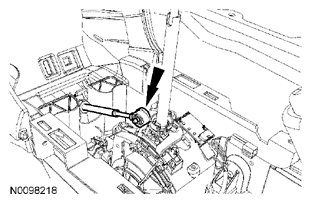

Fig 4: Location of Selector Lever Cable End
Courtesy of FORD MOTOR CO.

NOTE: LH shown in illustration, RH similar.

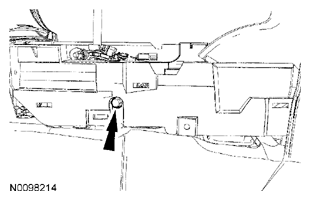

Fig 5: Location of Center Console-To-Selector Lever Screws

Courtesy of FORD MOTOR CO.

NOTE: LH shown in illustration, RH similar.

Fig 6: Location of Center Console Trim Covers

Courtesy of FORD MOTOR CO.

Install the LH and RH center console trim covers.
Install the PRNDL electrical connector on the RH side of the center console.

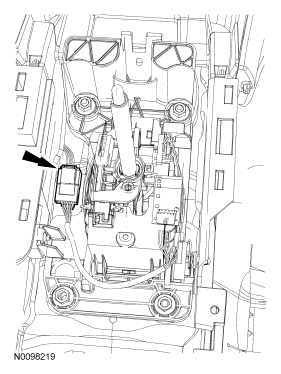

Fig 7: Location of Center Console PRNDL Electrical Connector
Courtesy of FORD MOTOR CO.
Install the selector lever bezel. For additional information, refer to SELECTOR LEVER BEZEL - MKZ .
Check the selector lever cable adjustment. Make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. If an adjustment is necessary, refer to SELECTOR LEVER CABLE ADJUSTMENT - AISIN AW21 .
