Selector Lever Cable Adjustment - 6F35

WARNING: This page is about a different variant/trim than selected.

Disconnect the selector lever cable end from the manual control lever.

Fig 1: Location of Selector Lever Cable End Of Manual Control Lever
Courtesy of FORD MOTOR CO.

NOTE: SelectShift™ shown in illustration, Transmission Control Switch (TCS) similar.

Fig 2: Location of Selector Lever D Position

Courtesy of FORD MOTOR CO.

Place the selector lever in the D position.
Place the manual control lever in the D position.

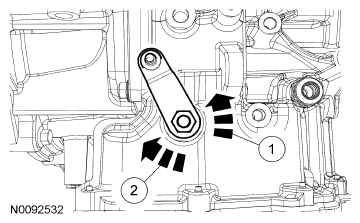

1. Rotate the manual control lever counterclockwise to the PARK position.
2. Rotate the manual control lever clockwise 3 detents to the D position.

  Fig 3: Rotating Manual Control Lever Counterclockwise To Park Position And Clockwise Detents To D Position
  Courtesy of FORD MOTOR CO.
Release the selector lever cable adjuster lock.
1. Pull out on the adjuster lock tabs.
2. Slide the lock up to unlock the selector lever cable.

  Fig 4: Pulling Adjuster Lock Tabs And Sliding Lock Up To Unlock Selector Lever Cable
  Courtesy of FORD MOTOR CO.
Align the selector lever cable end to the manual control lever ball stud and install it with the adjuster unlocked.

Fig 5: Location of Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Slide the adjuster tab in place to lock the selector lever cable.

Fig 6: Sliding Adjuster Tab In Place To Lock Selector Lever Cable
Courtesy of FORD MOTOR CO.
Verify that the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
