Pinpoint Test D: SELECTSHIFT™ Does Not Operate Correctly

WARNING: This page is about a different variant/trim than selected.

D1 CHECK FUSE 47 (10A)
- Check fuse: Battery Junction Box (BJB) 47 (10A).
- Is the resistance less than 5 ohms?
- Yes: GO to D2.
- No: REPAIR circuit CBK03 (GY) for a short to ground. INSTALL a new fuse. CLEAR the DTCs. TEST the system for normal operation.
D2 CHECK THE POWER CIRCUIT FOR VOLTAGE
- Disconnect: Selector Lever C3233.
- Ignition ON.
- Measure the voltage between selector lever harness C3233-8, circuit CBK03 (GY), vehicle harness side and ground.

  Fig 1: Measuring Voltage Between Selector Lever Harness C3233-8, Circuit CBK03 (GY), Vehicle Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is the voltage greater than 10 volts?
- Yes: GO to D4.
- No: GO to D3.
D3 CHECK THE POWER CIRCUIT FOR AN OPEN
- Ignition OFF.
- Disconnect: BJB Fuse 47 (10A).
- Measure the resistance between the output side of BJB fuse 47 (10A) and selector lever harness C3233-8 circuit CBK03 (GY), vehicle harness side.

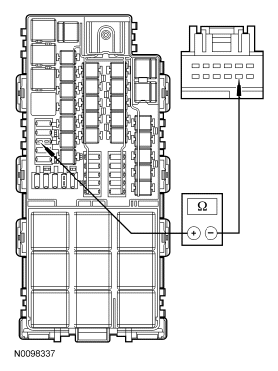

  Fig 2: Checking Power Circuit For Open
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
- Yes: INSTALL a new BJB.
- No: REPAIR circuit CBK03 (GY) for an open. CLEAR the DTCs. TEST the system for normal operation.
D4 CHECK THE GROUND CIRCUIT
- Measure the resistance between selector lever C3233-11, circuit RE407 (YE/VT) (Fusion) or circuit GD116 (BK/VT) (MKZ) and ground.

  Fig 3: Checking Ground Circuit
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
- Yes: GO to D5.
- No: REPAIR circuit RE407 (YE/VT) (Fusion) or circuit GD116 (BK/VT) (MKZ) for an open. CLEAR the DTCs. TEST system for normal operation.
D5 CHECK CIRCUITS FOR A SHORT TO GROUND
- Disconnect: Transmission Control Module (TCM) C1533.
- Measure the resistance between TCM C1533-3, circuit CET43 (GY) and ground.

  Fig 4: Measuring Resistance Between TCM C1533-3, Circuit CET43 (GY) And Ground
  Courtesy of FORD MOTOR CO.
- Measure the resistance between TCM C1533-4, circuit CET42 (GN/VT) and ground.

  Fig 5: Measuring Resistance Between TCM C1533-4, Circuit CET42 (GN/VT) And Ground
  Courtesy of FORD MOTOR CO.
- Is the resistance greater than 10, 000 ohms?
- Yes: GO to D6.
- No: REPAIR circuit CET43 (GY) or circuit CET42 (GN/VT) for a short to ground. CLEAR the DTCs. TEST system for normal operation.
D6 CHECK CIRCUITS FOR AN OPEN
- Measure the resistance between TCM C1533-3, circuit CET43 (GY) and selector lever C3233-9.

  Fig 6: Measuring Resistance Between TCM C1533-3, Circuit CET43 (GY) And Selector Lever C3233-9
  Courtesy of FORD MOTOR CO.
- Measure the resistance between TCM C1533-4, circuit CET43 (GY) and selector lever C3233-10.

  Fig 7: Measuring Resistance Between TCM C1533-4, Circuit CET43 (GY) And Selector Lever C3233-10
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
- Yes: INSTALL a new selector lever. REFER to SELECTOR LEVER - FUSION or SELECTOR LEVER - MKZ . CLEAR the DTCs. TEST the system for normal operation. If the condition still exists, INSTALL a new TCM. REFER to AUTOMATIC TRANSAXLE/TRANSMISSION - AISIN AW21 .
- No: REPAIR circuit CET43 (GY) or circuit CET42 (GN/VT) for an open. CLEAR the DTCs. TEST system for normal operation.
