Cylinder Head Temperature (CHT) Sensor
WARNING: This page is about a different variant/trim than selected.

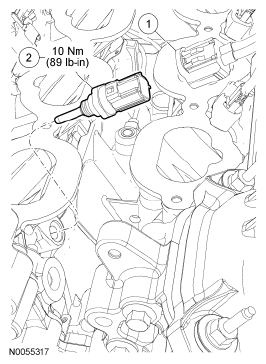

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Cylinder Head Temperature (CHT) sensor electrical connector |
| 2 | 6G004 | CHT sensor |
- Remove the lower intake manifold. For additional information, refer to ENGINE - 3.5L .
- Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.
- Remove and discard the CHT sensor.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
- Do not reuse the CHT sensor, install a new sensor.
