Thermostat - 3.5L: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Specialty Green Engine Coolant VC-10-A2 (US); CVC-10-A (Canada) |
WSS-M97B55-A |
| Motorcraft® Specialty Orange Engine Coolant VC-3-B (US); CVC-3-B (Canada) |
WSS-M97B44-D |

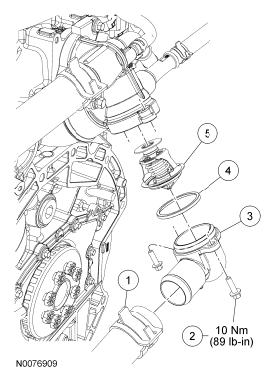

| Item | Part Number | Description |
|---|---|---|
| 1 | 8B273 | Lower radiator-to-thermostat housing cover hose |
| 2 | W500014 | Thermostat housing cover bolt (2 required) |
| 3 | 8594 | Thermostat housing cover |
| 4 | - | O-ring seal |
| 5 | 8575 | Thermostat |
