Radiator (View 2 of 2)

WARNING: This page is about a different variant/trim than selected.

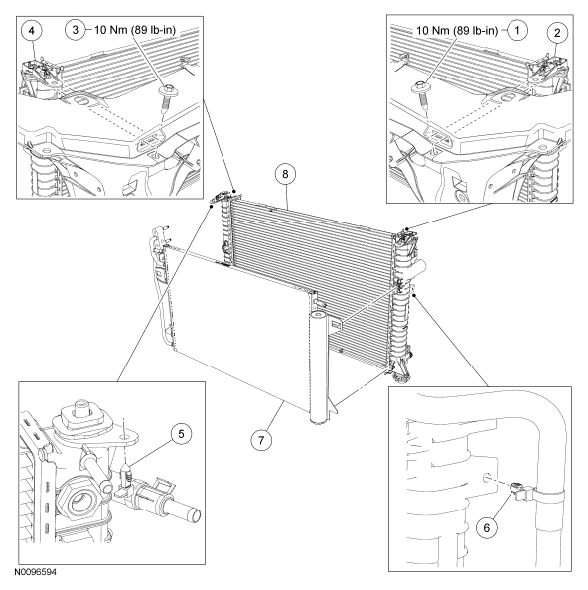

Fig 1: Exploded View Of Radiator With Torque Specifications - 3.5L (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500214	LH upper radiator support bracket bolt
2	8A194	LH upper radiator support bracket
3	W500214	RH upper radiator support bracket bolt
4	8A194	RH upper radiator support bracket
5	-	Power steering hose retainer
6	3493	Coolant hose retainer
7	19710	A/C condenser
8	8005	Radiator

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the cooling fan motor and shroud. For additional information, refer to COOLING FAN MOTOR AND SHROUD - 3.5L .
Detach the power steering hose retainer from the radiator.

Fig 2: Location of Power Steering Hose Retainer
Courtesy of FORD MOTOR CO.
Detach the coolant hose retainer from the radiator.

Fig 3: Location of Coolant Hose Retainer
Courtesy of FORD MOTOR CO.
Disconnect the radiator-to-degas bottle hose from the radiator.
Disconnect the 2 transmission cooling tubes from the radiator.
- To install, tighten to 30 Nm (22 lb-ft).
Disconnect the lower radiator hose from the radiator.
Remove the 2 bolts from the upper radiator support brackets and position the radiator towards the engine and remove the 2 upper radiator support brackets from the radiator.
- To install, tighten to 10 Nm (89 lb-in).
Remove the A/C condensor-to-radiator pin-type retainer.

Fig 4: Location of A/C Condensor-To-Radiator Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Squeeze the tabs and separate the A/C condenser from the radiator.
- Remove the radiator.

  Fig 5: Squeezing Tabs Of A/C Condenser
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
