Cooling Fan Motor and Shroud (View 1 of 2)
WARNING: This page is about a different variant/trim than selected.

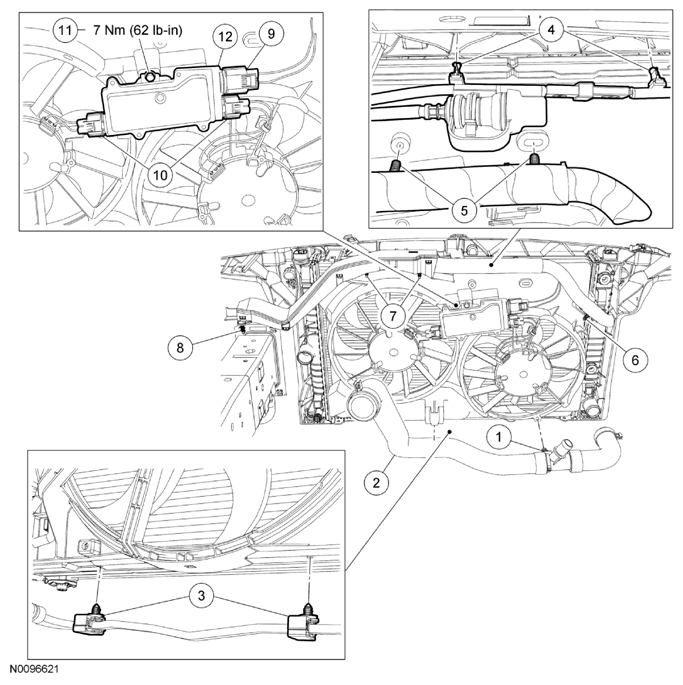

Fig 1: Cooling Fan Motor And Shroud Replacement Components With Torque Specifications (3.5L) (1 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH lower radiator hose pin-type retainer (part of 8B273) |
| 2 | 8B273 | Lower radiator hose |
| 3 | 256844 | Transmission fluid cooler tube retaining clips (part of 7R081) |
| 4 | 13A506 | Block heater retainers (part of 6B018) |
| 5 | 14A099 | Wire harness retainers (part of 14290) |
| 6 | 14A099 | Wire harness retainer (part of 14290) |
| 7 | 14A099 | Wire harness shield retainers (part of 14290) |
| 8 | 14A099 | Wire harness shield retainer (part of 14290) |
| 9 | 14A464 | Cooling fan module electrical connector (part of 14290) |
| 10 | - | Cooling fan module electrical connectors (part of 8C607) |
| 11 | - | Cooling fan module bolt |
| 12 | - | Cooling fan module |
