Coolant Pump Housing: Notes
WARNING: This page is about a different variant/trim than selected.

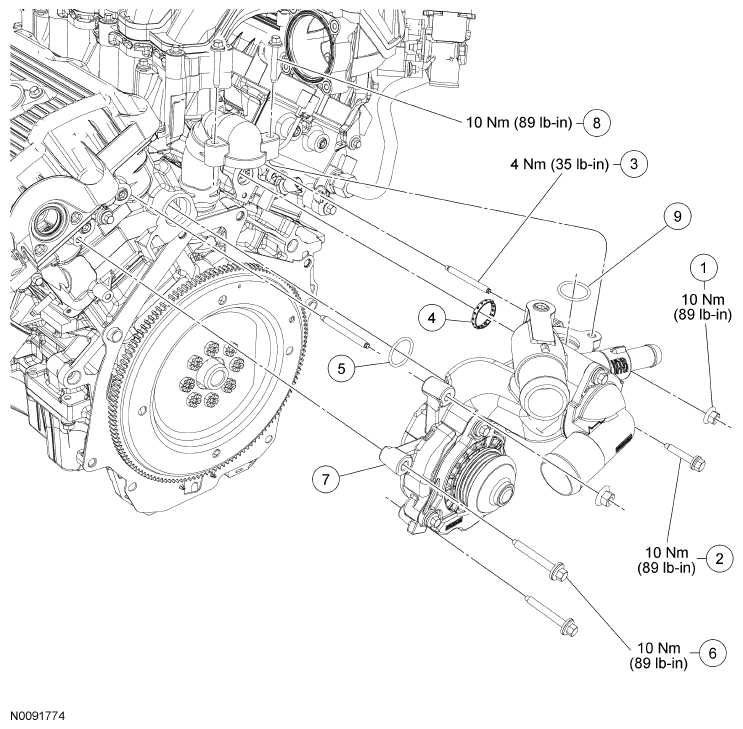

| Item | Part Number | Description |
|---|---|---|
| 1 | W705764 | Coolant pump housing nut (2 required) |
| 2 | W707643 | Coolant pump housing bolt |
| 3 | W713511 | Coolant pump housing stud (2 required) |
| 4 | 8C387 | Gasket |
| 5 | 8565 | O-ring seal |
| 6 | W503281 | Coolant pump housing bolt (2 required) |
| 7 | 8B858 | Coolant pump housing |
| 8 | W503281 | Coolant inlet pipe bolt (2 required) |
| 9 | 8255 | O-ring seal |
