Coolant Pump - 3.5L: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
NOTE: On early build engines, the timing chain rides on the inner side of the RH timing chain guide. Late build engines are equipped with a different design RH timing chain guide that requires the timing chain to ride on the outer side of the RH timing chain guide. For service, all replacement RH timing chain guides will be the late build design.

All vehicles

  1. Remove the engine front cover. For additional information, refer to ENGINE - 3.5L .
  2. Remove and discard the engine oil filter.

    Engines equipped with early build RH timing chain guides

  3. Rotate the crankshaft clockwise and align the timing marks on the Variable Camshaft Timing (VCT) assemblies as shown in illustration.
    Fig 1: Location of Timing Marks On Variable Camshaft Timing (VCT) Assemblies
    G08022297Courtesy of FORD MOTOR CO.

    Engines equipped with late build/replacement RH timing chain guides

  4. Rotate the crankshaft clockwise and align the timing marks on the VCT assemblies as shown in illustration.
    Fig 2: Location of Timing Marks On Variable Camshaft Timing (VCT) Assemblies
    G08022298Courtesy of FORD MOTOR CO.

    All vehicles

  5. NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.
    Fig 3: Installing Camshaft Holding Tool On Flats Of LH Camshafts
    G07999974Courtesy of FORD MOTOR CO.
  6. Install the Camshaft Holding Tool onto the flats of the LH camshafts.
  7. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC.
    Fig 4: Installing Camshaft Holding Tool On Flats Of RH Camshafts
    G07999975Courtesy of FORD MOTOR CO.
  8. Install the Camshaft Holding Tool onto the flats of the RH camshafts.
  9. Remove the 3 bolts and the RH VCT housing.
    Fig 5: Location of RH VCT Housing Bolts
    G08022301Courtesy of FORD MOTOR CO.
  10. Remove the 3 bolts and the LH VCT housing.

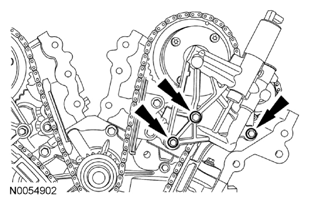

    Fig 6: Location of LH VCT Housing Bolts
    G08022302Courtesy of FORD MOTOR CO.
    NOTE: The following 3 steps are for primary timing chains when the colored links are not visible.
  11. Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown in illustration.
    Fig 7: Location of Timing Mark On Chain Link And RH Intake VCT Assembly
    G07464705Courtesy of FORD MOTOR CO.
  12. Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown in illustration.
    Fig 8: Location of Timing Mark On Chain Link And LH Intake VCT Assembly
    G07464706Courtesy of FORD MOTOR CO.
  13. Mark the timing chain link that aligns with the timing mark on the crankshaft sprocket as shown in illustration.
    Fig 9: Location of Timing Mark On Chain Link And Crankshaft Sprocket
    G07464707Courtesy of FORD MOTOR CO.
  14. Remove the 2 bolts and the primary timing chain tensioner.
    Fig 10: Location of Primary Timing Chain Tensioner And Bolts
    G08022306Courtesy of FORD MOTOR CO.
  15. Remove the primary timing chain tensioner arm.
    Fig 11: Location of Primary Timing Chain Tensioner Arm
    G08022307Courtesy of FORD MOTOR CO.
  16. Remove the 2 bolts and the lower LH primary timing chain guide.
    Fig 12: Location of LH Primary Timing Chain Guide And Bolts
    G08022308Courtesy of FORD MOTOR CO.
  17. Remove the primary timing chain.
    Fig 13: Location of Primary Timing Chain & Routing
    G08022309Courtesy of FORD MOTOR CO.
  18. Remove the 2 bolts and the upper LH primary timing chain guide.
    Fig 14: Location of Upper LH Primary Timing Chain Guide And Bolts
    G08022310Courtesy of FORD MOTOR CO.

    Engines equipped with early build RH timing chain guides

  19. Remove the RH primary timing chain guide lower bolt.
    Fig 15: Location of RH Primary Timing Chain Guide Lower Bolt
    G06063047Courtesy of FORD MOTOR CO.
  20. NOTE: The RH primary timing chain guide must be repositioned to allow the coolant pump to be removed.
  21. Loosen the RH primary timing chain guide upper bolt.
    • Rotate the guide and tighten the bolt.
      Fig 16: Location of RH Primary Timing Chain Guide Upper Bolt
      G06063048Courtesy of FORD MOTOR CO.

    Engines equipped with late build/replacement RH timing chain guides

  22. Remove the RH primary timing chain guide lower bolt.
    Fig 17: Location of RH Primary Timing Chain Guide Lower Bolt
    G06258631Courtesy of FORD MOTOR CO.
  23. NOTE: The RH primary timing chain guide must be repositioned to allow the coolant pump to be removed.
  24. Loosen the RH primary timing chain guide upper bolt.
    • Rotate the guide and tighten the bolt.
      Fig 18: Location of RH Primary Timing Chain Guide And Bolt
      G06502161Courtesy of FORD MOTOR CO.

    All vehicles

  25. Place clean, lint-free shop towels in the oil pan opening to prevent coolant from entering the oil pan during coolant pump removal.
  26. Remove the 8 bolts and the coolant pump.
    Fig 19: Location of Coolant Pump Bolts
    G07998215Courtesy of FORD MOTOR CO.
