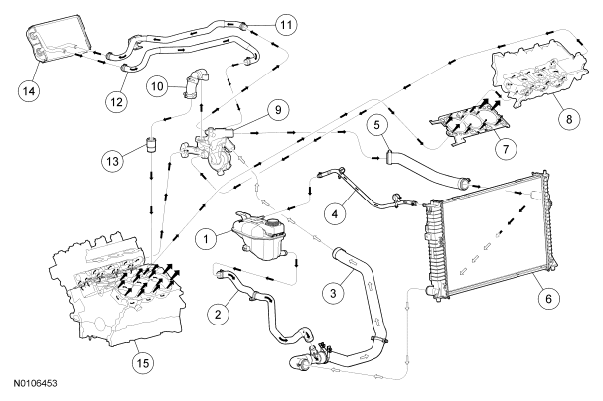

Coolant Flow Diagram: 3.0L
WARNING: This page is about a different variant/trim than selected.
NOTE:
Black arrows indicate hot, white arrows indicate cold.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8A080 | Degas bottle |
| 2 | 8C351 | Lower degas bottle hose |
| 3 | 8B273 | Lower radiator hose |
| 4 | 8276 | Degas bottle-to-radiator hose |
| 5 | 8B274 | Upper radiator hose |
| 6 | 8005 | Radiator |
| 7 | 6083 | Cylinder head gasket |
| 8 | 6050 | Cylinder head |
| 9 | 8B585 | Thermostat and coolant pump housing |
| 10 | 9N271 | Coolant inlet pipe |
| 11 | 18C266 | Heater core inlet hose |
| 12 | 18C266 | Heater core outlet hose |
| 13 | 8A505 | Coolant inlet tube |
| 14 | 19B555 | Heater core |
| 15 | 6010 | Engine block |
