Axle Assembly: Notes
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.

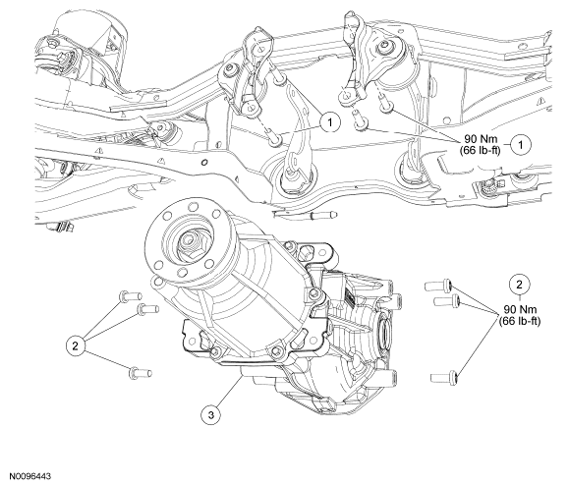

| Item |
Part Number |
Description |
| 1 |
W500442 |
Differential housing-to-front insulator bracket bolts (4 required) |
| 2 |
W500444 |
Side insulator bracket-to-rear axle differential bolts (6 required) |
| 3 |
4000 |
Rear axle assembly |
