Intermediate Shaft Seal - 6F35

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS

G06095378
 Handle
205-153 (T80T-4000-W)
G06095941
 Installer, PTO Driven Gear Oil Seal
308-429
  1. Using the Handle and PTO Driven Gear Oil Seal Installer, install the intermediate shaft seal.

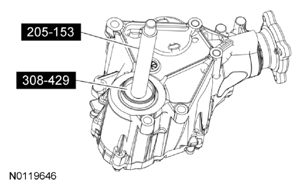

    Fig 1: Installing Intermediate Shaft Seal Using Handle And Pto Driven Gear Oil Seal Installer
    G07786922Courtesy of FORD MOTOR CO.
  2. Install the Power Transfer Unit (PTU). For additional information, refer to POWER TRANSFER UNIT (PTU) .
