Power Steering Pump Belt

WARNING: This page is about a different variant/trim than selected.

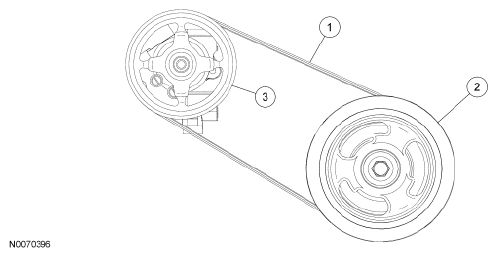

Fig 1: Identifying Crankshaft Pulley, Power Steering Pump Pulley And Drive Belt Routing
G06064138Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6C301 Power steering pump drive belt
2 6316 Crankshaft pulley
3 3D639 Power steering pump pulley
