Turbine Shaft Speed (TSS) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Lubricate the O-ring with clean automatic transmission fluid and install the TSS sensor.
    • Tighten to 12 Nm (106 lb-in).

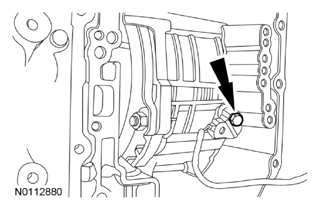

      Fig 1: Location of Turbine Shaft Speed Sensor Bolt
      G07785951Courtesy of FORD MOTOR CO.
  2. Install the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY  .
